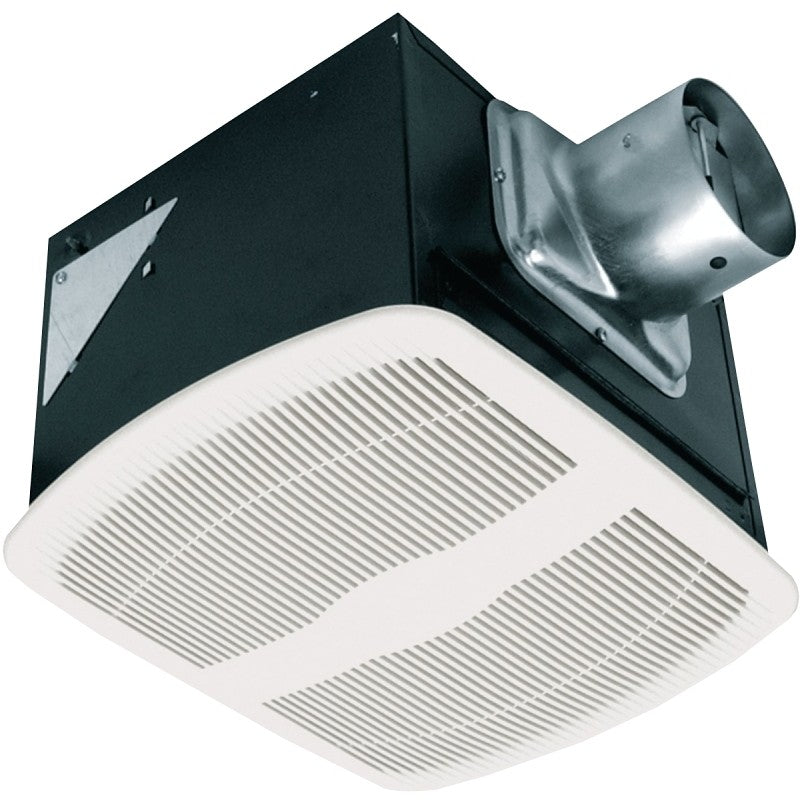

Air King AKLS Series AK110LS Exhaust Fan, 9-3/8 in L, 10-7/8 in W, 0.3 A, 115/120 V, 100 cfm Air, Metal
Product specification
Air King
083162211217
AK110LS
White, polymeric grill secured in place with torsion springs, easily removed if necessary
Blower wheel, balanced polymeric dual inlet blower wheel 5-13/32 in Dia x 4 in D, 30 paddles, secured in place using 8M hex nut
Motor enclosed 4-pole electronically balanced permanently split capacitor motor (PSC), life time lubrication, suitable for continuous operation
Duct collar plastic collar for 4 in duct connection, comes complete with built in non-metallic back draft damper for quiet operation
Ventilating are for bathrooms up to 110 sq-ft and for other rooms up to 135 sq-ft
Electrical connections 1/2 in electrical knockouts provided
Easy wiring access via either internal or external wiring compartment cover
4 in round duct connector with damper protects against backdrafts and ensures quiet operation
Side access panel allows you to wire the fan from inside or outside the housing
HEATING & COOLING
KITCHEN & BATH
VENTING & FANS
BATH FANS & VENTILATION
FAN/LIGHT COMBO
Bath Fans
14.5
12.0
9.0
10.38
