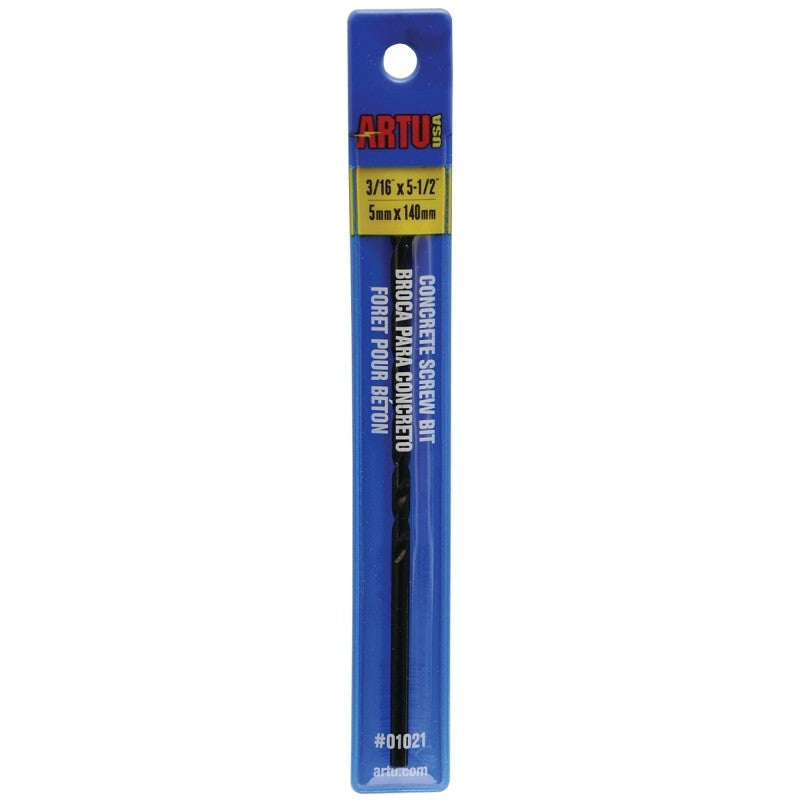

ARTU 01021 Drill Bit, 3/16 in Dia, 5-1/2 in OAL, Parabolic Flute, 3/16 in Dia Shank, Straight Shank
Made of chrome vanadium steel shank for enormous strength, for use with Tapcon fasteners. Special negative back grinding enables the tip to bore through applications such as masonry, ceramic tile, concrete, brick, fiberglass, plexiglas, cast metals, hardened steel, granite, marble, woods and plastic with a filing action rather than a cutting action. Requires no center punch, eliminates walking and can be re-sharpened. NOTE: not recommended for use on mild steel, e.g. aluminum, angle iron, copper, galvanized pipe, brass and stainless steel. Conforms to ANSI standards.
Product specification
Brand
Artu
UPC
722793010218
Model Number
01021
Application
For rotary or percussion drilling
Feature
Chrome vanadium steel shank for enormous strength and flexibility
Feature
Outlasts regular carbide-tipped bits
Feature
Requires no center punch and eliminates walking
Feature
Resharpens on a high-quality silicon carbide grinding wheel
Feature
Uses standard coolants such as turpentine, light oil, water
Feature
Flat bottom parabolic flute for faster waste removal
Feature
Special negative back grinding enables the tip to bore through materials with a filing action, not cutting
Feature
The blend and high tech bonding of cobalt and tungsten carbide allows bit to withstand temperatures up to 2000 deg F
Category
POWER TOOLS & ACC
Additional Category
POWER TOOLS AND ACCESSORIES
Additional Category
POWER TOOL ACCESSORIES
Additional Category
POWER DRILLING & ACCESSORIES
Additional Category
MASONRY BITS
Additional Category
Drill Bits
Length
7.25
Width
0.563
Height
0.563
Weight
0.04
