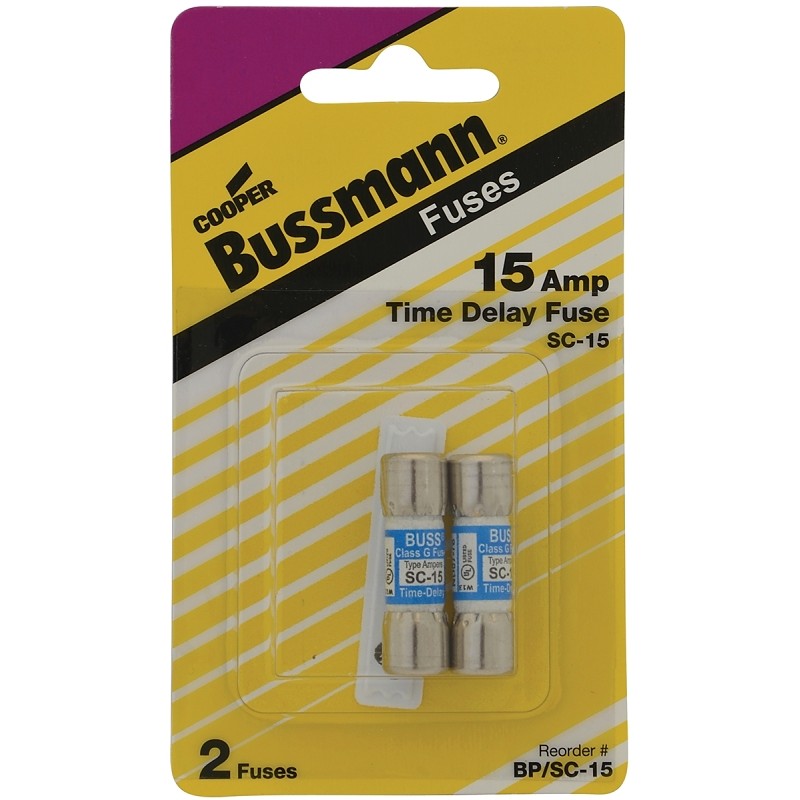

Bussmann BP/SC-15 Time Delay Fuse, 15 A, 600 VAC, 170 VDC, 10, 100 kA Interrupt, Glass Body
High interrupting rating, current limiting. Rated at 277/480, 120/208 and 120/240 V. UL Listed 100,000 AIR, RMS symmetrical AC (Glass G). 13/32 Dia fuse. Glass tube, nickel-plated brass endcaps.
Product specification
Brand
Bussmann
UPC
051712617611
Model Number
BP/SC-15
Application
For use in various non-demanding and general-purpose applications
Feature
Overcurrent protection solution compared to circuit breakers
Feature
Compact branch-circuit units with high interrupt rating and current limitation
Feature
Size rejection by length helps prevent overfusing
Feature
Fuses 7 A and above have a degree of overload time delay that permits them to pass temporary overloads
Feature
With up to a 600 V rating, they can be used in 120/208 V, 120/240 V and 277/480 V circuits
Category
ELECTRICAL
Additional Category
ELECTRICAL
Additional Category
ROUGH ELECTRICAL
Additional Category
FUSES & BREAKERS
Additional Category
FUSE REDUCERS
Additional Category
Specialty Fuses
Length
6.0
Width
2.0
Height
3.0
Weight
0.04
