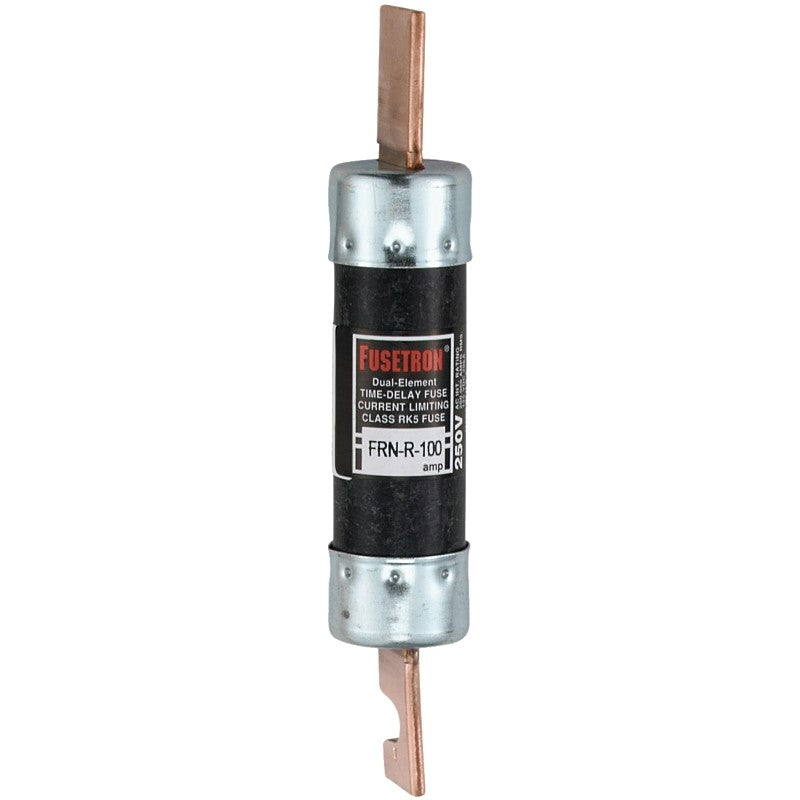

Bussmann FRN-R-100 Fuse, 100 A, 250 VAC, 125 VDC, 20, 200 kA Interrupt, Fiberglass Body, L
Provides motor overload, ground fault and short-circuit protection. Helps protect motors against burnout from overloads and single phasing on three phase systems. Will hold an overload which is five times greater than the ampere rating of the fuse for a minimum of ten seconds. 250 V maximum. UL listed, CSA Certified.
Product specification
Brand
Bussmann
UPC
051712101851
Model Number
FRN-R-100
Application
For combination starters, motor control centers, machinery disconnects, power panelboards
Feature
Bussmann Series fusetron cartridge fuses are 23% more energy efficient and offer the best time-delay performance
Feature
Their dual element feature allows closer sizing to load for great protection of motors and transformers
Feature
When sized correctly, they help protect motors from burnout caused by overloads or single-phasing
Feature
The time-delay feature allows the initial startup current surge for typical motors to pass, but opens prior to motor burnout when longer, dangerous overloads are present
Category
ELECTRICAL
Additional Category
ELECTRICAL
Additional Category
ROUGH ELECTRICAL
Additional Category
FUSES & BREAKERS
Additional Category
FUSE REDUCERS
Additional Category
Cartridge Fuses
Length
6.0
Width
1.25
Height
1.25
Weight
0.45
