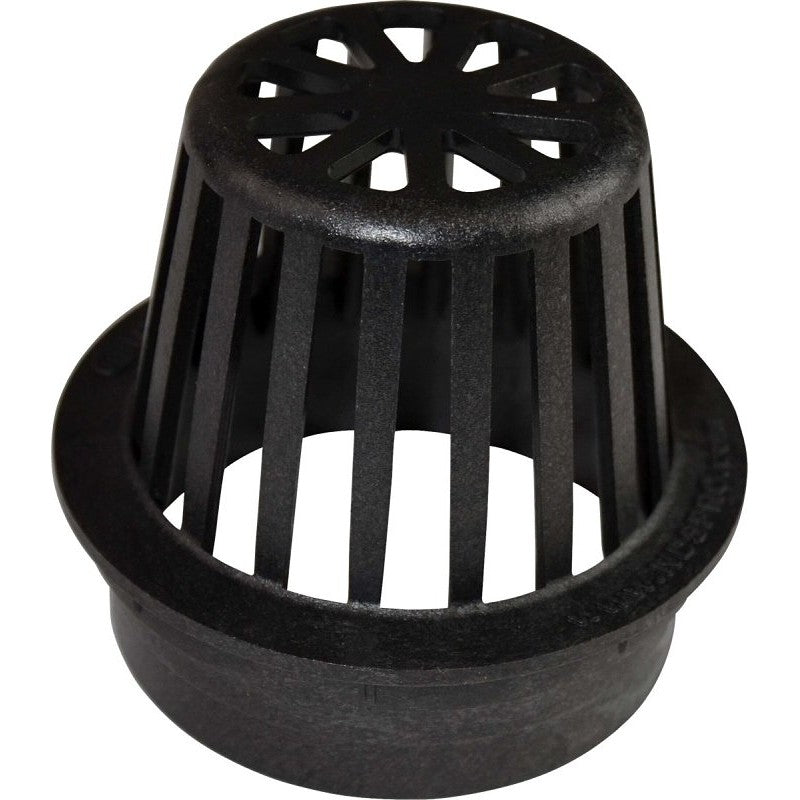

DrainTech 0443SDB Atrium Grate, 4 in Dia, Round, Polyethylene, Black
Draining water from an area with lots of leaves and mulch, The Atrium drain grate is designed to get the job done. The domed design rises above the surface of the ground to block debris near the base of the drain grate, while stormwater drains from above. The dome grate has an open surface area of 17 sq-in and flow rate of 52 gpm. Use in mulched landscape beds, natural areas and window wells to drain moderate flows of excess stormwater. The 4 in Atrium grate fits 4 in sewer and drain pipe and fittings, 4 in single-wall corrugated pipe and 4 in triple-wall pipe for a soil-tight fit. Made of high-density polyethylene (HDPE) treated with UV inhibitors.
Product specification
Brand
Draintech
UPC
052063400785
Model Number
78/0443SDB
Application
For collecting and removing of excess water from driveways, patios and any other outdoor areas
Feature
Grate is 4-7/16 in H, top is 2-3/4 in Dia, grate openings are 1/4 in W
Category
PLUMBING
Additional Category
BUILDING MATERIALS
Additional Category
ROUGH PLUMBING SUPPLIES
Additional Category
PIPE FITTINGS
Additional Category
YARD BASIN & TRENCH DRAIN ACCESSORIES
Additional Category
Plumbing Grates
Length
4.0
Width
4.6
Height
4.6
Weight
0.16
