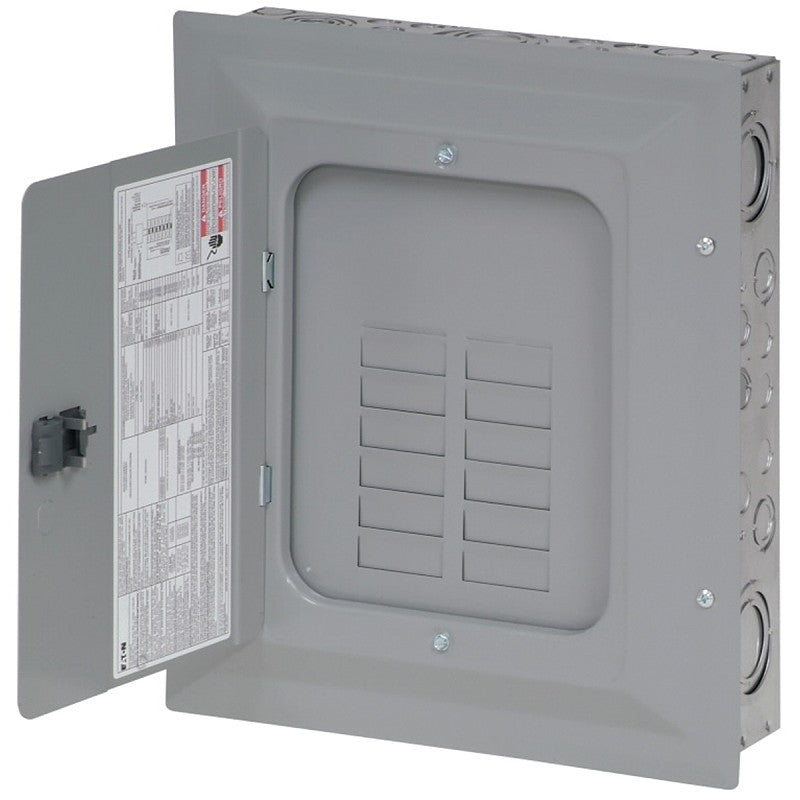

Eaton BRP12L125G Load Center, 125 A, 24-Pole, 12-Space, 24-Circuit, Main Lug, Plug-On Neutral, Type BR
Eaton Load Center, 120/240 VAC, 125 A, Number of Phases: 1, Number of Spaces: 12, Number of Poles: 24, Number of Circuits: 24, Breaker/Load Center Type: Main Lug, Plug-On Neutral, Type BR, Interrupt Rating: 10 kAIC, Cable Size: #6 to 2/0 AWG, Wiring Configuration: 3-Wire, Bus Bar Material: Aluminum, Enclosure Type: NEMA 1, Flush, Surface Mounting, Metal, Includes: Cover
Product specification
Brand
Eaton
UPC
786689053000
Model Number
BRP12L125G
Application
For residential and light commercial use
Feature
Knockout locations for additional access
Feature
Optimized knockouts easier to remove
Feature
Smooth case edges provides a more professional look and fee
Feature
Top or bottom feed straight-in wiring saves labor and material
Feature
One panel for either top or bottom applications
Feature
2/0 lug easily removable and can be installed in any location on the neutral bar
Feature
Compact design for easier wiring improved wireway access
Feature
Provides a clean gutter space
Feature
Inboard neutral increases gutter space to allow for the professional installation of conductors
Category
ELECTRICAL
Additional Category
ELECTRICAL
Additional Category
ROUGH ELECTRICAL
Additional Category
LOAD CENTERS
Additional Category
LOAD CENTERS
Additional Category
Main Lug Load Centers
Length
18.8
Width
15.8
Height
4.4
Weight
17.0
