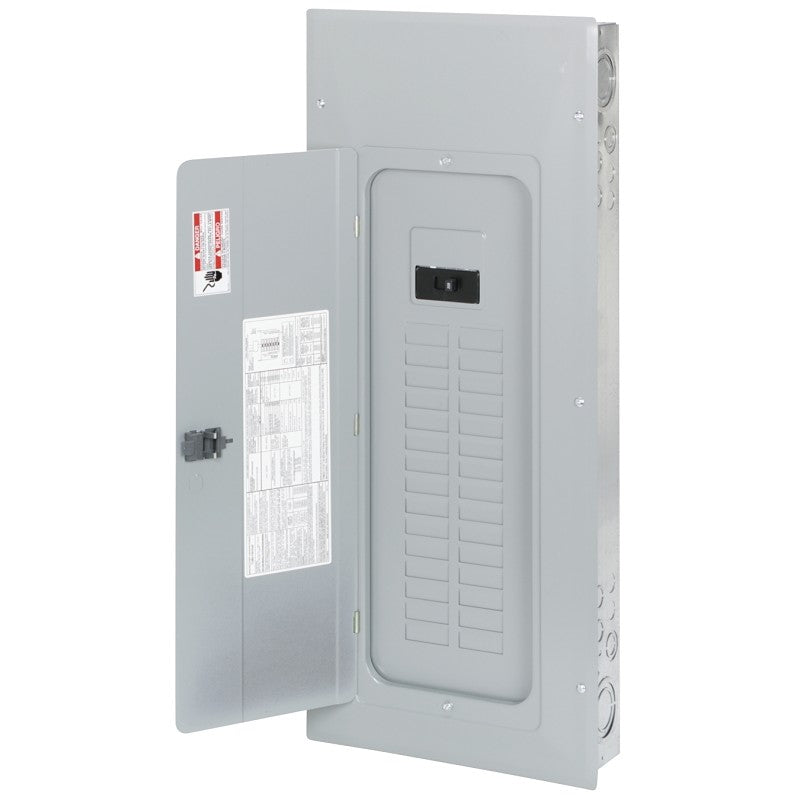

Eaton BRP30B200 Load Center, 60 -Pole, 200 A, 30 -Space, 60 -Circuit, Main Breaker, Plug-On Neutral, Type BR
Eaton Load Center, 120/240 VAC, 200 A, Number of Phases: 1, Number of Spaces: 30, Number of Poles: 60, Number of Circuits: 60, Breaker/Load Center Type: Main Breaker, Plug-On Neutral, Type BR, Interrupt Rating: 25 kA, Cable Size: 2 AWG to 300 kcmil, Wiring Configuration: 3-Wire, Bus Bar Material: Aluminum, Bus Bar Rating: 200 A, Cover/Lid Type: Flush, Surface, Enclosure Type: NEMA 1, Temperature Rating: 60 to 75 deg C, Metal, Includes: Cover
Product specification
Brand
Eaton
UPC
786689044060
Model Number
BRP30B200
Application
For light commercial and residential applications
Feature
Knockout locations for additional access
Feature
Optimized knockouts easier to remove
Feature
Smooth case edges - providing a more professional look and feel
Feature
Top or bottom feed straight-in wiring saves labor and material
Feature
One panel for either top or bottom applications
Feature
2/0 lug- easily removable and can be installed in any location on the neutral bar
Feature
Compact design for easier wiring improved wireway access
Feature
Provides a clean gutter space
Feature
In board neutral - increases gutter space to allow for professional installation of conductors
Category
ELECTRICAL
Additional Category
ELECTRICAL
Additional Category
ROUGH ELECTRICAL
Additional Category
LOAD CENTERS
Additional Category
LOAD CENTERS
Additional Category
Main Breaker Load Centers
Length
4.5
Width
15.75
Height
35.5
Weight
36.0
