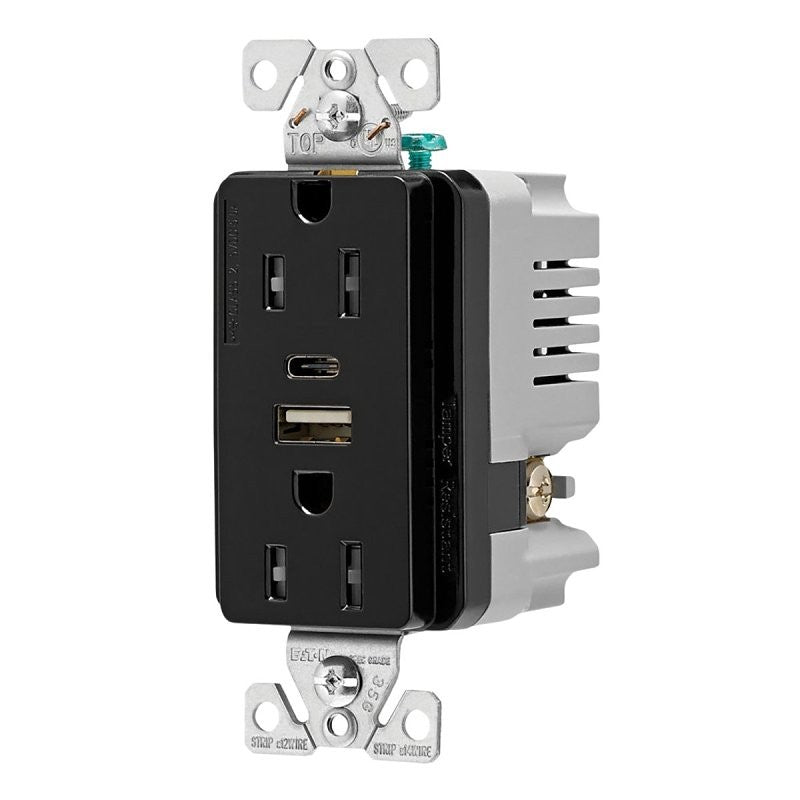

Eaton TRUSBAC15BK-KB-L Combination USB Receptacle, 2-Pole, 15 A, 125 V, 2-USB Port, Type A, C USB, NEMA: 5-15R, Black (Pack of 4)

Product specification
Eaton
032664016660
TRUSBAC15BK-KB-L
Standard AC receptacle with USB-A and USB-C ports rated at a combined 5 A
USB-C charging port charges most electronic devices that comply with the USB-C standard
25 W total output power rating
Tamper-resistant shutters provide compliance with NEC article 406.12 that states that all 15 A and 20 A, 125 V receptacles installed in dwelling units must be tamper-resistant
Replaces a standard duplex receptacle
Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
Thermoplastic top and back body are virtually unbreakable to deliver years of durable performance
Steel mounting strap is zinc-plated for added corrosion resistance
Convenient patented built-in wire strippers speed installation
ELECTRICAL
ELECTRICAL
ROUGH ELECTRICAL
SWITCHES & RECEPTACLES
DUPLEX RECEPTACLES
Outlets with USB Ports
9.5
5.5
6.5
1.14
