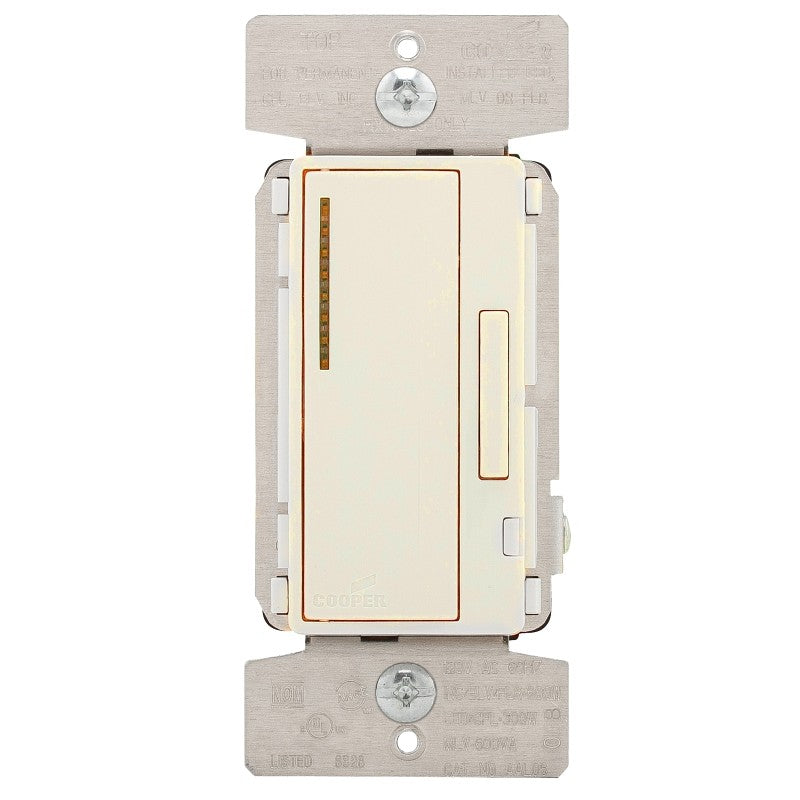

Eaton Wiring Devices AAL06-C2-K Smart Dimmer, 5 A, 120 V, 300 W, CFL, LED Lamp, 3-Way, Ivory/Light Almond/White
Replaces a standard switch. Provides smooth, full range digital dimming for incandescent, halogen, electronic low-voltage, magnetic low-voltage, dimmable LED/CFL and Fluorescent lighting. 300 W dimmable LED/CF, 600 W Incan/dimmable ELV/halogen/dimmable FLR 600 VA MLV, 120 VAC, 60 Hz requires neutral connection in wallbox. Ability to set min/max dimmer level for maximum compatibility with different loads. Rapid start feature which allows the light to come on instantly in the case of LED/CFL loads and the ability to disable that feature. One master dimmer works with up to five (5) accessory dimmers, Orgill Sku #339-6181. Tri-color packaging which provides one unit box with three color faceplates. cULus listed and NOM certified.
Product specification
Brand
Eaton Wiring Devices
UPC
032664730856
Model Number
AAL06-C2-K
Feature
Electro-mechanical push pad for On/Off operation with separate dim/bright bar
Feature
10 secs delayed-off feature by pressing and holding push pad for 2 secs when dimmer is on
Feature
Selectable rapid start feature to ensure lamp start-up at low preset light levels
Feature
LED light level display for presetting illumination levels and master or accessory units for multi-location control
Feature
Adjustable low-end and high-end trimming to prevent lamp flickering
Feature
No de-rating required for CFL/LED in multi-gang installations
Feature
Preset feature allows user to return to previous light setting when turning lights on
Category
ELECTRICAL
Additional Category
ELECTRICAL
Additional Category
ROUGH ELECTRICAL
Additional Category
SWITCHES & RECEPTACLES
Additional Category
DIMMER SWITCHES
Additional Category
Dimmers
Length
10.0
Width
4.875
Height
6.375
Weight
0.421
