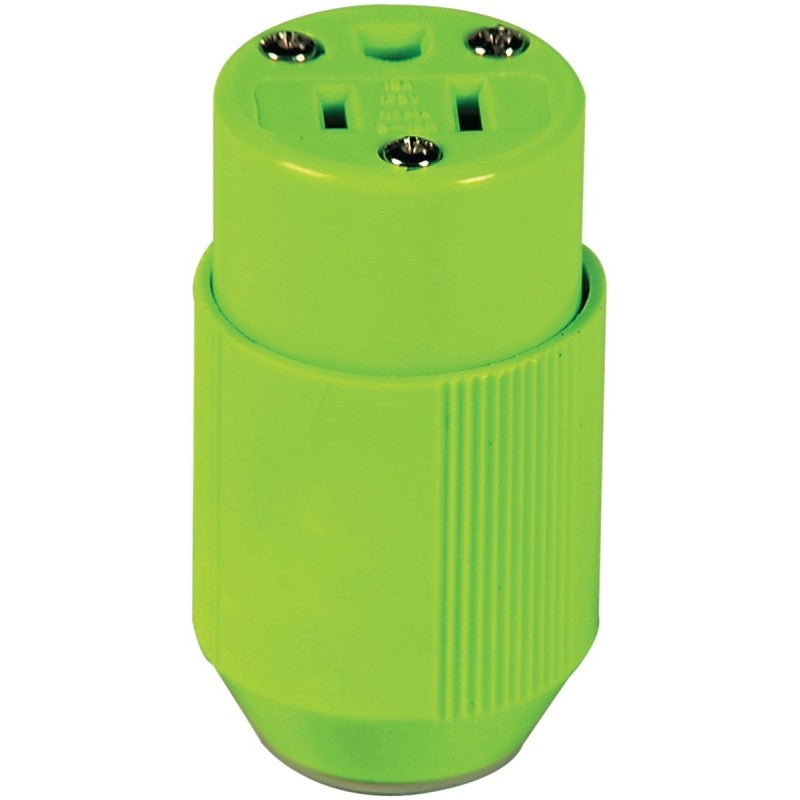

Eaton Wiring Devices BP3487-4GN Electrical Connector, 2 -Pole, 15 A, 125 V, NEMA: NEMA 5-15R, Fluorescent Green
Highly visible and easy to locate at the job sight. Molded out of impact-and chemical-resistant nylon. Neoprene gasket seals cord opening to protect against moisture, dirt, wood chips and more. Temperature rating of -40 to 75 deg C. 15 A. UL 498 listed (file #E15012), CSA Certified C22.2 #42 (file #2081) (6221-02) NOM Certified. NEMA 5-15. Carded.
Product specification
Brand
Eaton Wiring Devices
UPC
032664577512
Model Number
BP3487-4GN
Feature
Solid brass plug blades are firmly embedded in body
Feature
Terminal screw clamps are designed to contain wire and prevent binding
Feature
Terminal screws backed out ready for wiring
Feature
High visibility products for quick location and identification of plugs in the middle of a job site
Feature
High visibility product contains neoprene dust cover which prevents dust from entering the plug or connector at the cable entrance
Feature
Combination Slotted/Phillips head mounting and terminal screws ease installation with power screwdrivers
Category
ELECTRICAL
Additional Category
ELECTRICAL
Additional Category
HOUSEHOLD ELECTRICAL
Additional Category
HOUSEHOLD WIRING DEVICES
Additional Category
ELECTRICAL CONNECTORS
Additional Category
Plugs & Connectors
Length
12.25
Width
4.125
Height
6.125
Weight
0.21
