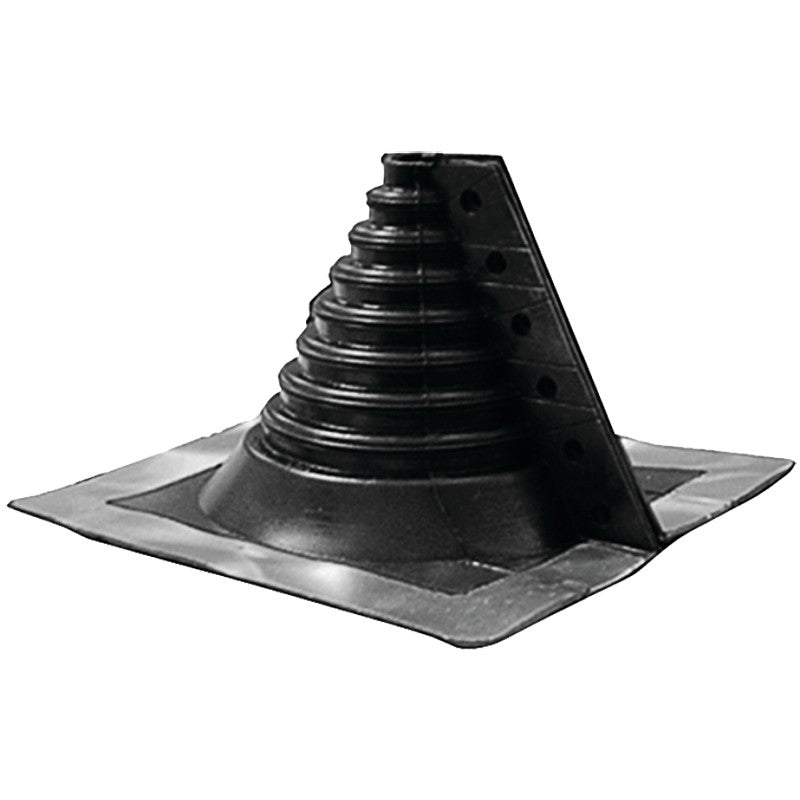

FLASHING 0.25-4IN EPDM 8X8IN

Oatey

750405140190

14049

8 x 8 in soft aluminum base for profiled metal roofs

Easily customized to accommodate Use on multiple pipe sizes

Most commonly used with an existing roof penetration, when installing a flashing Over the pipe is not an option and requires a hard-to-reach or wrap-around installation

Marked cut lines allow for easy installation and customization for various pipe sizes with a sharp knife or scissors

Slide over pipe, use silicone sealant between base and surface, then secure with sheet metal screws

Flexible base conforms to most flat or contoured roof surfaces including clay tile and metal roofs, sliding over vent pipe with pitch from 0 to 45 deg

Non-fading EPDM collar provides maximum resistance to weathering caused by ozone and UV rays

Rated to withstand 212 deg F continuous heat and approved for Type B installations, intermittent temperature resistance to 275 deg F

Do not use petroleum based products on retro master roof flashings

HARDWARE

PLUMBING

BUILDING MATERIALS

BUILDING HARDWARE

PIPE FLASHINGS

Vent Pipe Flashing

6.0

8.5

8.5

1.0
