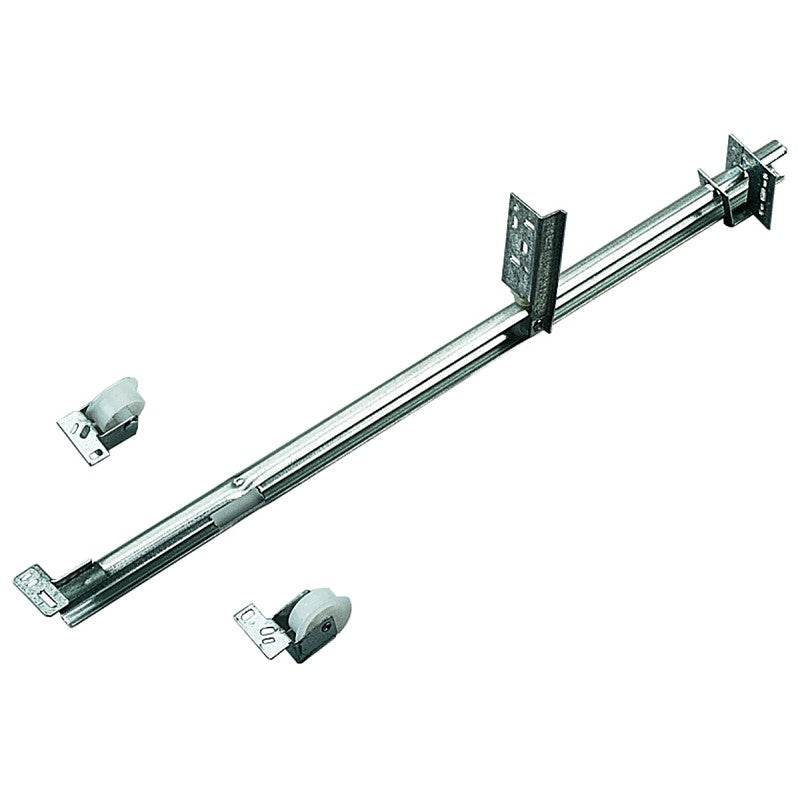

Knape & Vogt 1175P ZC 22-5/8 Drawer Slide, 50 lb, Center Undermount Mounting, 22-5/8 in L Rail, 1/2 in W Rail, Steel
Light-duty slide designed for general drawer applications. Mounts with staples or screws. Height of 1 in. Required Clearance:1/8 in each side, 1-1/2 in from rear of drawer to cabinet, drawer to be 3/8 in shallower than opening. High-density polyethylene rollers. Drawers lift out for easy removal. Packaged with screws and installation instructions.
Product specification
Brand
Knape & Vogt
UPC
029274001421
Model Number
1175P ZC 22-5/8
Application
For kitchen cabinets, bathroom vanities
Feature
3/4 in extension under drawer slide moves on rollers for stabilization
Feature
The drawers lift out for easy removal and the slide can be mounted easily with staples or screws
Feature
Recommended maximum drawer width 18 in wide
Feature
Drawers lift out for easy removal
Feature
Mounts with staples or screws
Category
HARDWARE
Additional Category
HARDWARE
Additional Category
GENERAL HARDWARE
Additional Category
CABINET & DRAWER HARDWARE
Additional Category
DRAWER & TABLE SLIDE ACCESSORIES
Additional Category
Drawer Slides
Length
23.0
Width
7.25
Height
3.75
Weight
0.74
