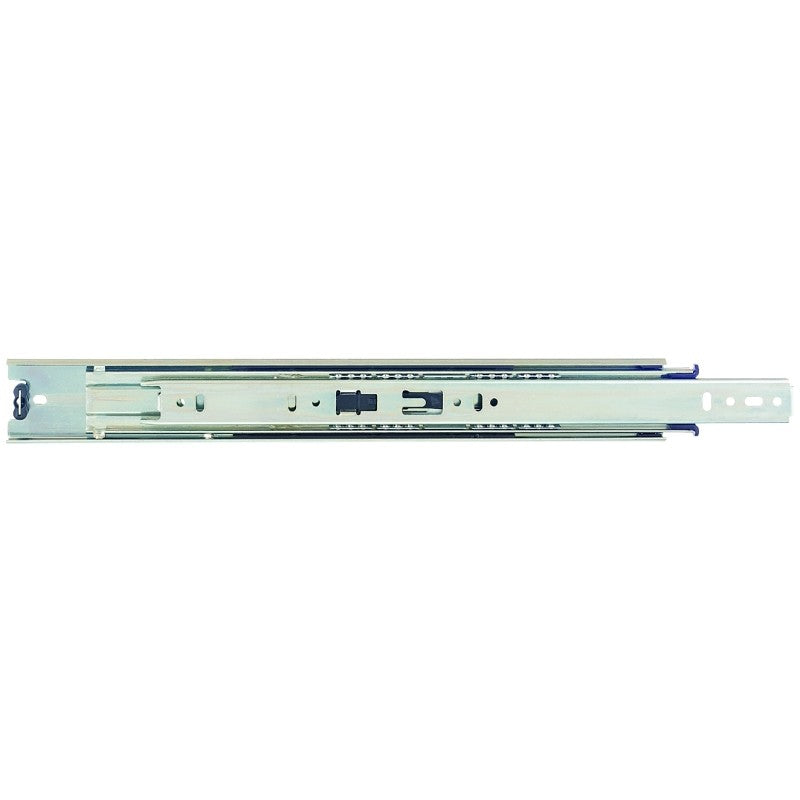

Knape & Vogt 8400P 22 Drawer Slide, 22 in L Extension, 100 lb, 1/2 in W Rail
Knape & Vogt

Knape & Vogt 8400P 22 Drawer Slide, 22 in L Extension, 100 lb, 1/2 in W Rail

Sale price$23.90
Medium-duty, precision slides for box drawer or pedestal file drawers up to 24 in wide. For frame and frameless construction. May be used horizontal position with a reduced load rating of 30 lb. Height of 1-13/16 in, required clearance of 1/2 in plus 1/32 in minus 0 each side. Features telescoping, full extension on precision steel ball bearings. 32 mm hole pattern with direct access mounting. Lever disconnect for easy drawer removal. Ball retainer latch and ramps, for easy drawer insertion. Drawer adjustment without removal. Flexible mounting tabs self-adjust to side clearance. Metal ball retainer holds 3 bearings per inch of race for smooth and quiet motion. Polymer stop cushions. Non-handed. Packaged with screws and installation instructions.

Product specification

Brand

Knape & Vogt

UPC

029274109929

Model Number

8400P22

Application

For desk and credenza box drawers, cabinetry, architectural woodwork

Feature

Full extension drawer slide features an ergonomically designed push-in lever release for easy drawer removal
