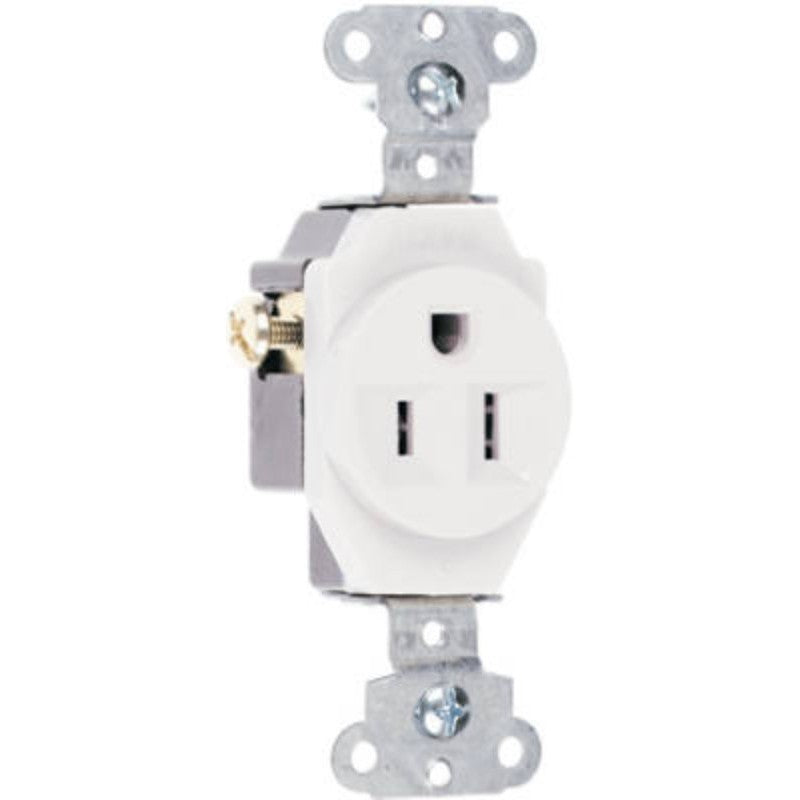

Legrand 5251WCC8 Single Receptacle, Wall Mounting, 2-Pole, 125 VAC, 15 A, Back and Side Wiring, White
Pass & Seymour Single Receptacle, 125 VAC, 15 A, Number of Poles: 2, Number of Wires: 3, Wiring Type: Back and Side, Wire Size: 14 to 10 AWG, NEMA Configuration: NEMA 5-15R, Wall Mounting, Nylon, White, Dimensions: 1.32 in W x 1.08 in D x 3.28 in H
Product specification
Brand
Legrand
UPC
785007856309
Model Number
5251WCC8
Feature
Auto-ground clip assures a positive ground to metal box
Feature
Two-drive screws anchor strap to back body and face where abrupt removal torque is greatest
Feature
Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength
Feature
Backed-out tri-drive steel terminal screws, internal screw pressure plate back and side wire capability
Feature
Two back wire holes for increased wiring flexibility
Feature
One-piece brass triple-wire power contacts for lasting retention
Category
ELECTRICAL
Additional Category
ELECTRICAL
Additional Category
ROUGH ELECTRICAL
Additional Category
SWITCHES & RECEPTACLES
Additional Category
SINGLE RECEPTACLES
Additional Category
Single Outlets
Length
6.812
Width
4.25
Height
5.25
Weight
0.17
