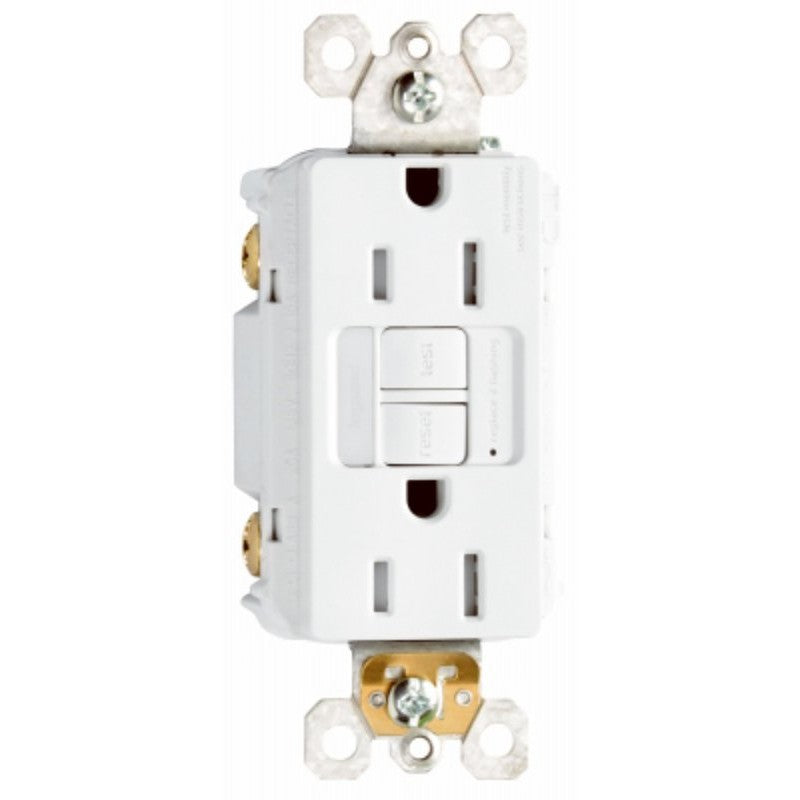

Legrand radiant 1597NTLTRWCCD4 Nightlight/GFCI Receptacle, 2 -Pole, 15 A, 125 VAC, Back, Side Wiring, White
Product specification
Legrand
785007135701
1597NTLTRWCCD4
Thinner than competitors' GFCI Receptacles leaves more room for wires in the box
Side or internal screw pressure plate back wire with 10 to 14 AWG solid or stranded copper wire and two back wire holes per terminal
Conducts an automatic test every 3 s, ensuring it's always ready to protect, If the device fails the test, the trip indicator light red LED flashes to signal that the GFCI should be replaced
Equipped with proven SafeLock protection feature, if critical components are damaged and protection is lost, power to the receptacle is disconnected
Patented shutter system helps prevent improper insertion of foreign objects
Mounting screws are shipped captive in the device and wallplate for easier installation
Feed-thru wiring configuration allows GFCI to protect downstream receptacles
Prevents line-load reversal miswire, no power to the face or downstream receptacles if wired incorrectly
Dual-direction test and reset button colors match the device face
ELECTRICAL
ELECTRICAL
ROUGH ELECTRICAL
SWITCHES & RECEPTACLES
GFCI RECEPTACLES
Duplex Outlets
4.5
6.0
4.0
0.265
