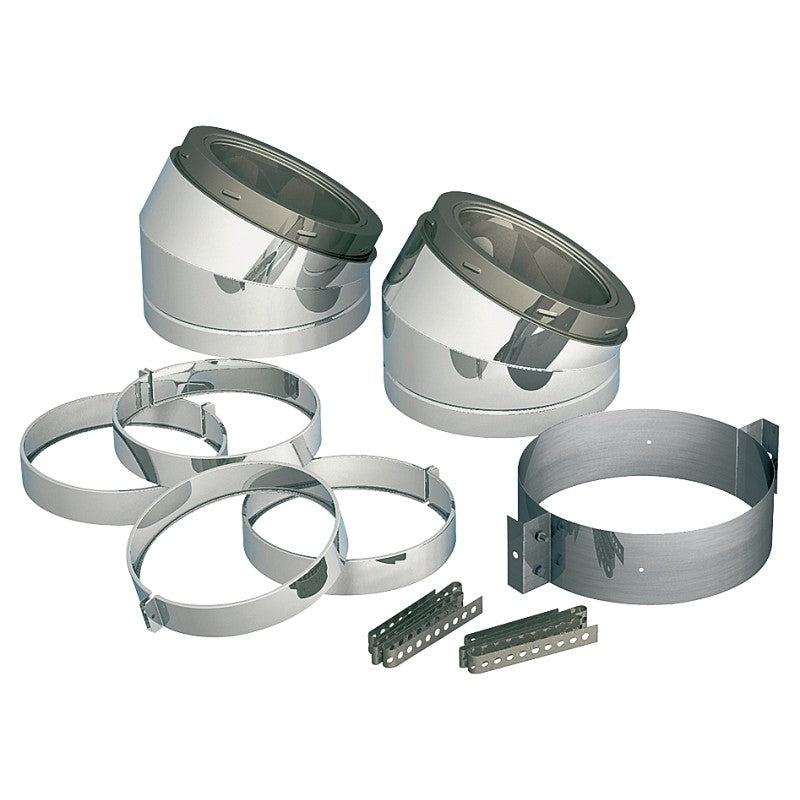

Selkirk 206211 Type HT Insulated Elbow Kit, Includes: (2) 30 deg Elbows, (2) Locking Bands and (1) Interior Re-Support
Can be used for fixed offsets of 30 deg slope. Greater angles are prohibited by UL Standard 103 and by the terms of the product listing. Required Locking bands (2 packaged with each elbow kit) are to be used at each joint. Each offset must be resupported. Elbows rotate 360 deg to provide the exact orientation required. Insulated elbows can be used at the same 2 ft air space clearance as chimney sections. Kit includes 2 elbows, 2 locking bands and one interior resupport.
Product specification
Brand
Selkirk
UPC
053713999239
Model Number
206211
Feature
Greater angles are prohibited by UL® standard 103 and by the terms of the product listing
Category
HEATING & COOLING
Additional Category
HEATING & COOLING
Additional Category
FIREPLACES & STOVES
Additional Category
STOVE PIPE & ACCESSORIES
Additional Category
PIPES
Additional Category
Chimney Pipe Fittings
Length
11.0
Width
9.0
Height
16.0
Weight
10.0
