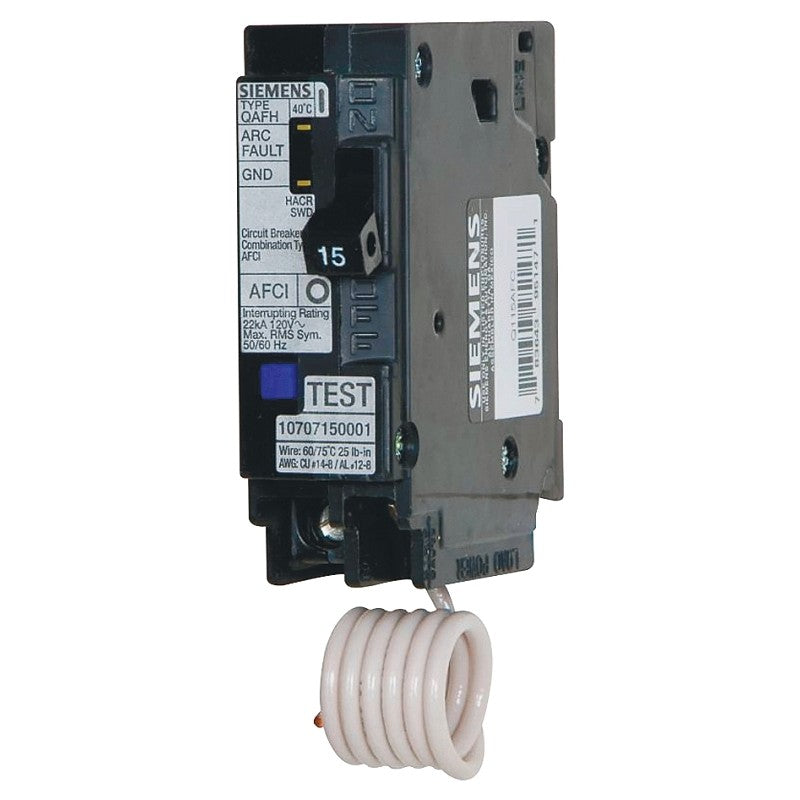

Siemens QA115AFC Circuit Breaker, AFCI, Combination, 15 A, 1 -Pole, 120/240 V, Fixed Trip, Plug Mounting, Black
Plug-in, combination type CAFCI circuit breaker, complies with the requirements for both branch/feeder and outlet circuit CAFCIs. Required on January 1, 2008 by 2005 NEC, combination type CAFCI circuit breakers must be placed on bedroom power and lighting circuits. Protects downstream branch circuit wiring and cord sets and power supply cords. Provides ARC fault, overload and short circuit protection. UL listed. Protects against worn electrical insulation or damaged wire, misapplied or damaged plug-in appliances and equipment and loose electrical connections. 2 LEDs appear for 5 secs each time the CAFCI is turned on, up to 30 days after the last trip to indicate last known trip condition. One LED means arcing fault. Two LEDs means arcing fault to ground. 10 kA interrupting rating. UL listed, 120 VAC. Wire range 14 to 8 AWG. 1 in space, 120 V.
Product specification
Brand
Siemens
UPC
804766707407
Model Number
QA115AFC
Application
For use with Siemens EQ load centers
Feature
Detects all three possible types of arc faults such as line-to-ground, line-to-neutral and Series
Feature
Intended to mitigate the effects of parallel arcs by de-energizing the circuit when an arc-fault is detected
Category
ELECTRICAL
Additional Category
ELECTRICAL
Additional Category
ROUGH ELECTRICAL
Additional Category
FUSES & BREAKERS
Additional Category
CIRCUIT BREAKERS
Additional Category
Circuit Breakers
Length
5.0
Width
13.0
Height
4.0
Weight
0.4
