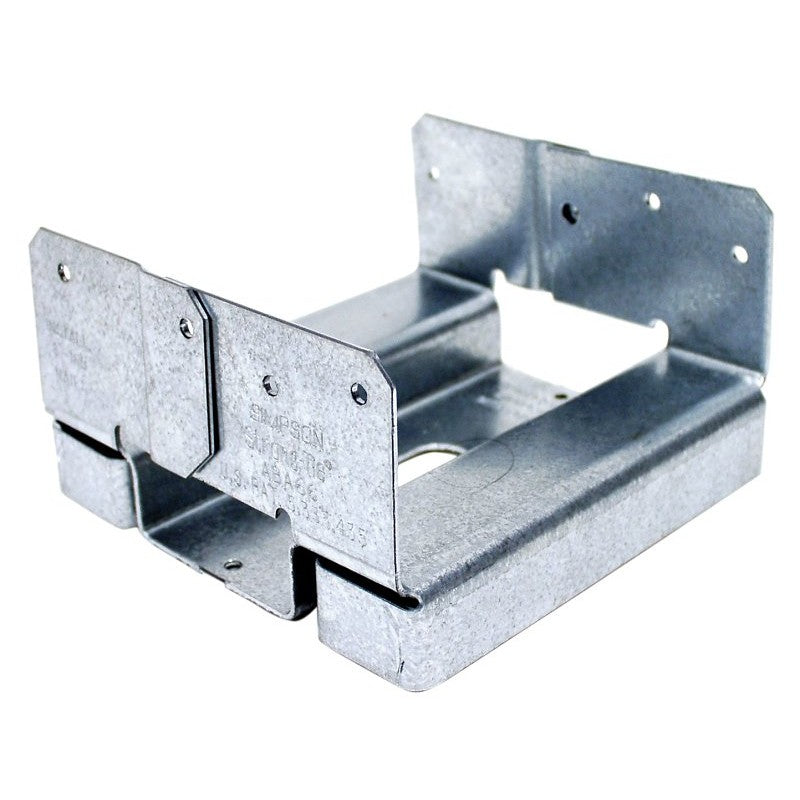

Simpson Strong-Tie ABA Series ABA66Z Post Base, 10,245 lb Down DF/SP, 850 lb Uplift, 6 x 6 in Post, Steel, ZMAX, 1/PK (Pack of 10)
The ABA is designed to attach wooden posts to existing concrete. The built-in 1 in stand-off of this adjustable post-base helps to prevent rot at the end of the post. The ABA has a slotted anchor hole in the base for adjustability and attaches to the post with nails or Strong-Drive® SD Connector screws. This versatile post-base makes a cost-effective option for securing a post to the foundation. This post-base is available in model sizes for double 2X, 4 x 4, 4 x 6 and 6 x 6 lumber, both nominal and rough. The new double 2X size can be used for installing a structural post consisting of two 2 x 4 studs nailed together as well as for securing double 2X beams to a footing for ground-level decks.

Product specification
Brand
Simpson Strong-Tie
UPC
044315671906
Model Number
ABA66Z
Feature
The slot in the base enables flexibility around the anchor bolt, making precise post placement easier
Feature
1 in stand-off design meets code requirements for structural posts installed in basements or exposed to weather or water splash
Feature
Increased uplift loads for earthquake or wind loading
Feature
ZMAX® galvanization offers extra corrosion resistance for exterior and treated-wood applications
Category
HARDWARE
Additional Category
FASTENERS
Additional Category
BUILDING MATERIALS
Additional Category
JOIST HANGERS & CONNECTORS
Additional Category
COLUMN BASES
Additional Category
Post Bases
Length
13.5
Width
8.0
Height
7.25
Weight
16.0
