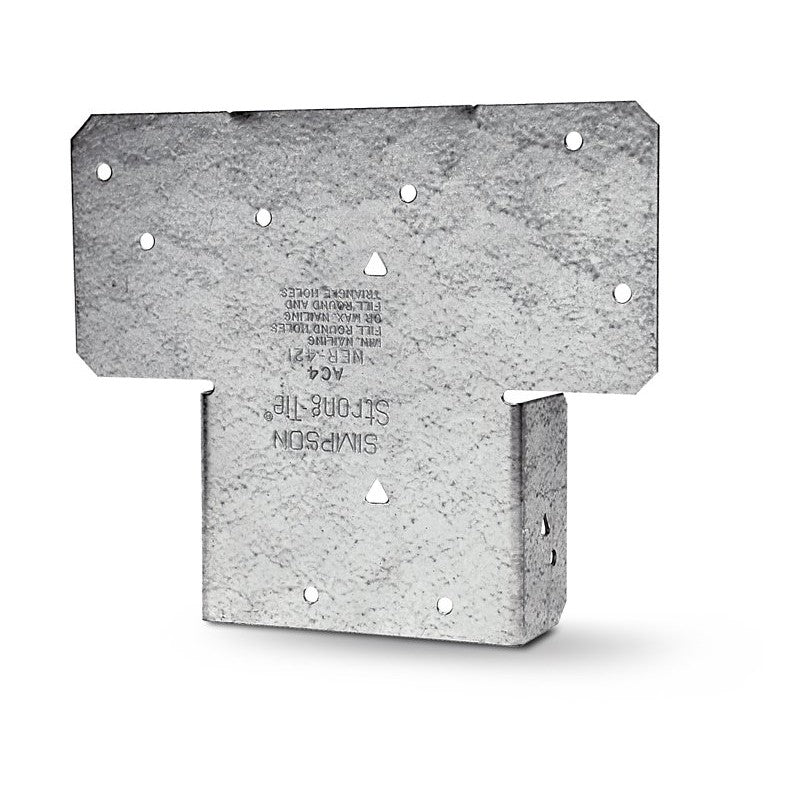

Simpson Strong-Tie AC AC4Z Post Cap, 4 x 4 in Post/Joist, Steel, ZMAX (Pack of 20)
The AC is designed to provide a secure connection between a beam and a post. This post cap is ideal for new or retrofit applications where structural support is needed. The AC features both minimum and maximum nailing patterns for different load options.

Product specification
Brand
Simpson Strong-Tie
UPC
044315337208
Model Number
AC4Z
Feature
Eliminates nailing into end grains
Feature
Stronger than angled nailing or screw fastening
Feature
ZMAX® galvanization offers extra corrosion resistance for exterior and treated-wood applications
Feature
Load-rated when installed in pairs
Feature
Maximum nailing option for increased loads
Feature
Fill all round holes for minimum load capacity, fill all round and all triangular holes for maximum load capacity
Category
HARDWARE
Additional Category
FASTENERS
Additional Category
BUILDING MATERIALS
Additional Category
JOIST HANGERS & CONNECTORS
Additional Category
COLUMN BASES
Additional Category
Post Anchors & Caps
Length
10.0
Width
8.0
Height
6.5
Weight
10.0
