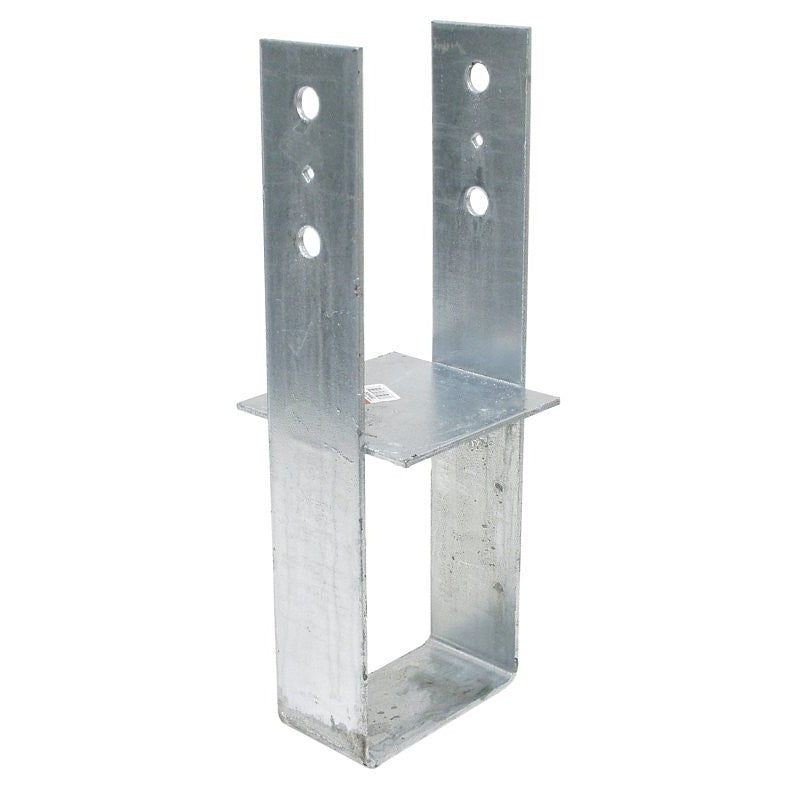

Simpson Strong-Tie CB CB66HDG Column Base, 6 x 6 in Post, 7 ga Gauge, Steel, Hot-Dipped Galvanized
The CB is designed to connect posts to concrete foundations for a wide range of lumber, glulam and engineered-wood product sizes. This column base is either cast-in-place or wet set into the concrete where the bottom of the base plate sits flush with the concrete for full post bearing. The CB is ideal for columns that require high structural values and rugged performance.
Product specification
Brand
Simpson Strong-Tie
UPC
044315164507
Model Number
CB66HDG
Feature
Increased uplift resistance for wind or seismic loading
Feature
Bolt hole locations meet code-required spacing for optimal capacity
Feature
Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
Category
HARDWARE
Additional Category
FASTENERS
Additional Category
BUILDING MATERIALS
Additional Category
JOIST HANGERS & CONNECTORS
Additional Category
COLUMN BASES
Additional Category
Post Bases
Length
12.5
Width
16.0
Height
20.625
Weight
7.26
