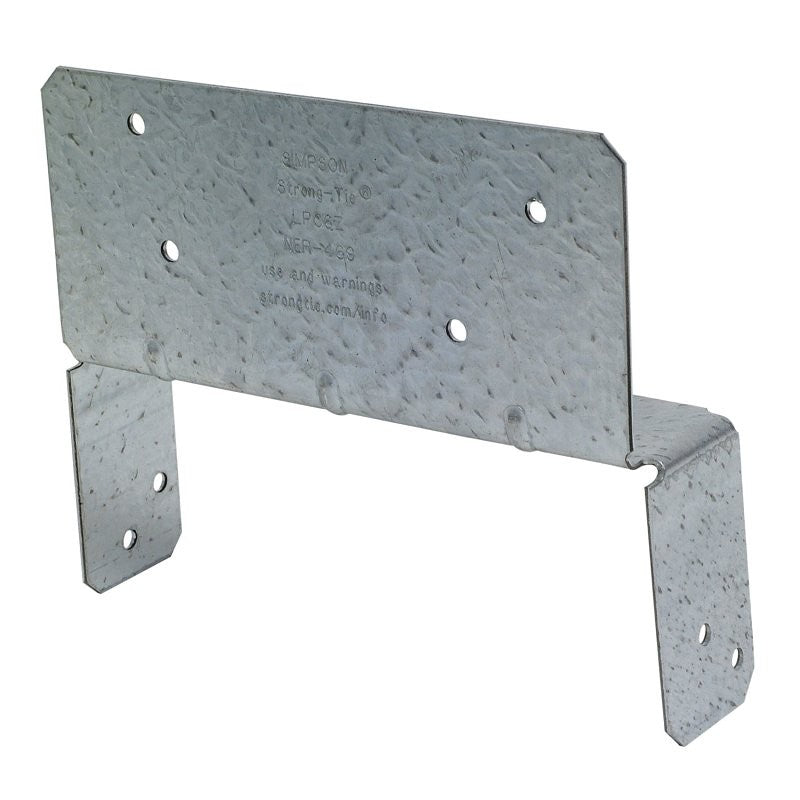

Simpson Strong-Tie LPC LPC6Z Light Post Cap, 6 x 6 in Post/Joist, Steel, ZMAX (Pack of 40)
The LPCZ is designed for a variety of connections between a 4X or 6X beam and a post. This versatile, light post cap has an adjustable design that allows for connection versatility in both new and retrofit applications where structural support is needed. The LPCZ has a ZMAX® coating, a thicker galvanized finish that helps to extend the service life of the connector.
Product specification
Brand
Simpson Strong-Tie
UPC
044315744402
Model Number
LPC6Z
Feature
Adjustable design allows greater connection versatility
Feature
Always install in pairs; universal design eliminates need for rights and lefts
Feature
Stronger than angled nailing or screw fastening, eliminates nailing into end grain
Feature
Can be installed after beams have been put in place
Feature
For use with nominal 4X or 6X lumber
Feature
ZMAX® galvanization offers extra corrosion resistance for exterior and treated-wood applications
Feature
2-1/2 in beams may be used if 0.148 x 1-1/2 in nails are substituted for 0.148 x 3 in nails
Category
HARDWARE
Additional Category
FASTENERS
Additional Category
BUILDING MATERIALS
Additional Category
JOIST HANGERS & CONNECTORS
Additional Category
COLUMN BASES
Additional Category
Post Anchors & Caps
Length
4.747
Width
5.681
Height
1.486
Weight
18.0
