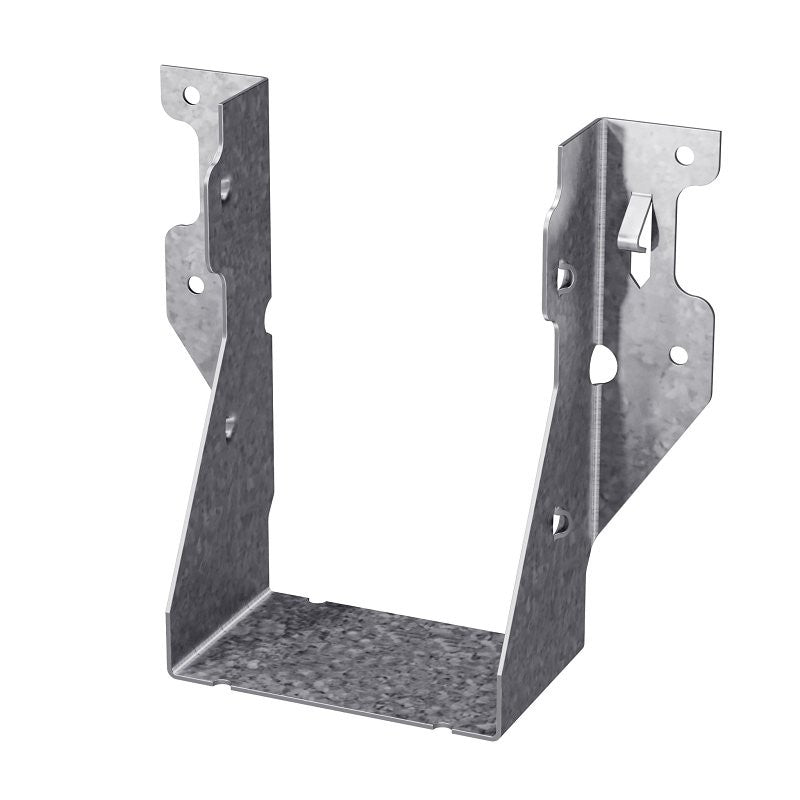

Simpson Strong-Tie LUS Series LUS26-2 Joist Hanger, 4-15/16 in H, 2 in D, 3-1/8 in W, Steel, Galvanized, Face (Pack of 25)
The LUS is an easy to install, economical hanger designed for common lumber sizes. This widely used hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation and the use of all common nails for the same connection.

Product specification
Brand
Simpson Strong-Tie
UPC
044315684500
Model Number
LUS26-2
Feature
Patented double-shear nailing design provides greater strength with fewer nails
Feature
Speed prongs for fast and easy installation
Feature
Angled joist nailing easier in tight spaces
Feature
Do not bend or remove tabs
Feature
Made from 18 ga steel
Feature
Galvanized (G90) for extra corrosion resistance
Feature
Cannot be modified
Feature
Works for a wide range of applications
Feature
Features speed prongs used to temporarily position and secure the connector for easier and faster installation
Category
HARDWARE
Additional Category
FASTENERS
Additional Category
BUILDING MATERIALS
Additional Category
JOIST HANGERS & CONNECTORS
Additional Category
JOIST HANGERS
Additional Category
Joist Hangers
Length
20.0
Width
8.0
Height
6.0
Weight
9.0
