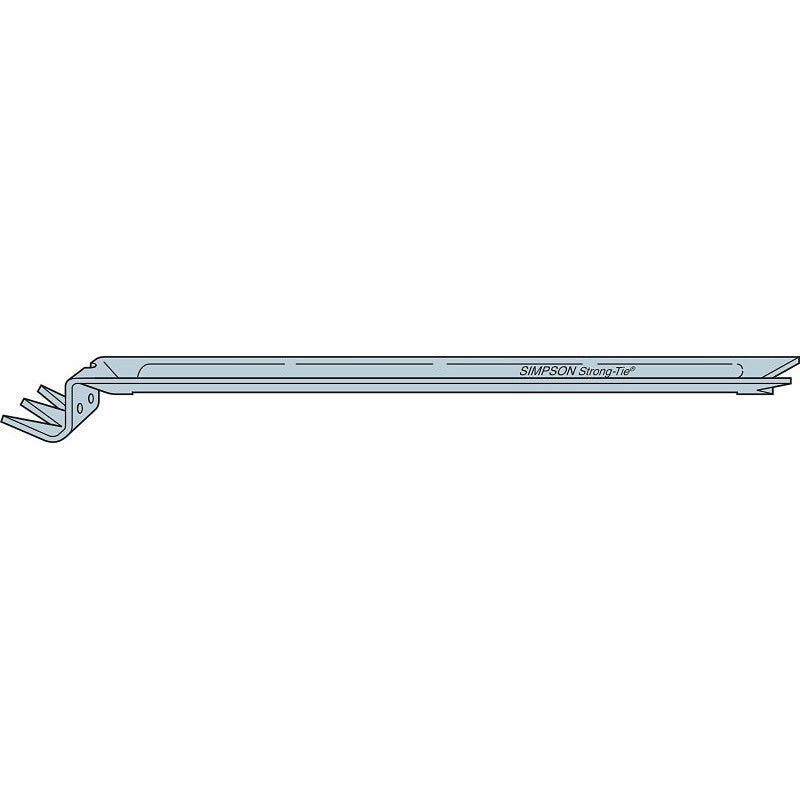

Simpson Strong-Tie NCA NCA2X12-16 Nailless Compression Bridging, 12 in L, 2 in W, 2 x 12 in Post/Joist, Steel (Pack of 100)

Product specification
Simpson Strong-Tie
044315042706
NCA2X12-16
Nail less bridging installation eliminates callbacks for nail squeaks
Precision-formed into a rigid "V" section
May be installed before or after sheathing, from the top or bottom
Galvanized (G90) for extra corrosion resistance
Keeps floor system continuity and prevents joist rotation
Installs with built-in prongs that eliminate nail squeaks
Support floor joists with a depth-to-thickness ratio of six or more with bridging at intervals not exceeding 8 ft, if span is greater than 8 ft, install on 2 x 8 or larger joists, if span is greater than 16 ft, use more than one pair
Tension bridging works only in tension, so must be used in cross pairs
Install bridging tightly; loose installation may allow floor movement
HARDWARE
FASTENERS
BUILDING MATERIALS
JOIST HANGERS & CONNECTORS
STRUCTURAL TIES & STRAPS
Bridging
6.5
8.0
20.625
23.0
