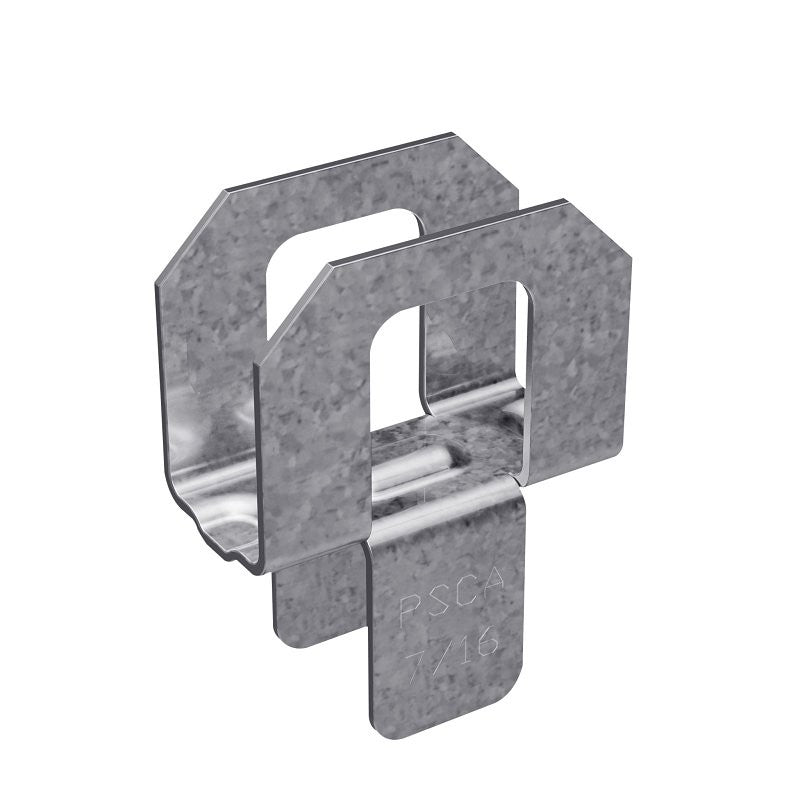

Simpson Strong-Tie PSCA Series PSCA 7/16 Panel Sheathing Clip, 20 ga Thick Material, Steel, Galvanized, 250/PK
The PSCA is designed to brace unsupported sheathing edges when sheathing meets edge to edge without a rafter for support. This light sheathing clip provides a 1/8 in gap to address shrinkage and expansion of roof sheathing. Inserted over the edges of adjacent plywood panels, the PSCA reduces deflection and keeps panels even to maintain a level plane on the structure.
Product specification
Brand
Simpson Strong-Tie
UPC
707392780205
Model Number
PSCA 7/16
Feature
Quick installation, no nails required
Feature
Provides a secure environment for sheathing
Feature
Support for shrinkage and expansion over time
Feature
Provides the 1/8 in space between plywood panels as recommended by the American Plywood Association
Feature
Use the same size sheathing clip as the panel thickness
Feature
Galvanized (G90) for extra corrosion resistance
Feature
Maximum spans may be reduced for low slopes or high uniform loads
Feature
For 7/16 in panel thickness
Category
HARDWARE
Additional Category
FASTENERS
Additional Category
BUILDING MATERIALS
Additional Category
JOIST HANGERS & CONNECTORS
Additional Category
STRUCTURAL TIES & STRAPS
Additional Category
Plywood Clips
Length
4.38
Width
7.81
Height
10.31
Weight
4.5
