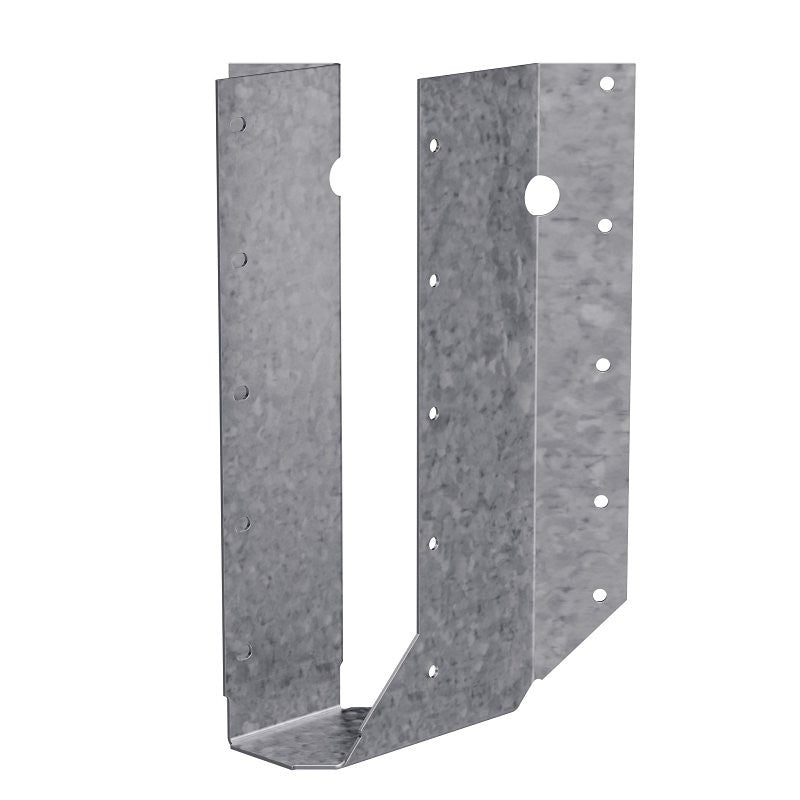

Simpson Strong-Tie SUL SUL210Z Hanger, 8-1/8 in H, 2 in D, 1-9/16 in W, Steel, ZMAX, Face Mounting (Pack of 10)
The SUR/L are 45 deg skewed hangers designed to support solid sawn and engineered-wood products used in wood construction. These U-shaped hangers encapsulate the top-flange of the joist, so no web stiffeners are required for standard installation. The SUR and SUL hangers are identical except that they are skewed 45 deg to the right (SUR) and the left (SUL), respectively.
Product specification
Brand
Simpson Strong-Tie
UPC
707392523406
Model Number
SUL210Z
Application
For solid sawn lumber
Feature
Skewed left
Feature
Can accommodate joists skewed 40 to 50 deg
Feature
Angled nail slots direct nails for proper installation
Feature
Made from 16 ga steel
Feature
ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
Feature
Features obround nail holes on-the acute side, allowing nails to be easily installed parallel to the joist
Feature
These hangers cannot be modified but will accommodate a 40 to 50 deg skewed joist
Feature
Features positive-angle nailing for engineered-wood sizes to prevent wood splitting and to speed installation
Category
HARDWARE
Additional Category
FASTENERS
Additional Category
BUILDING MATERIALS
Additional Category
JOIST HANGERS & CONNECTORS
Additional Category
JOIST HANGERS
Additional Category
Joist Hangers
Length
10.015
Width
7.982
Height
6.484
Weight
10.2
