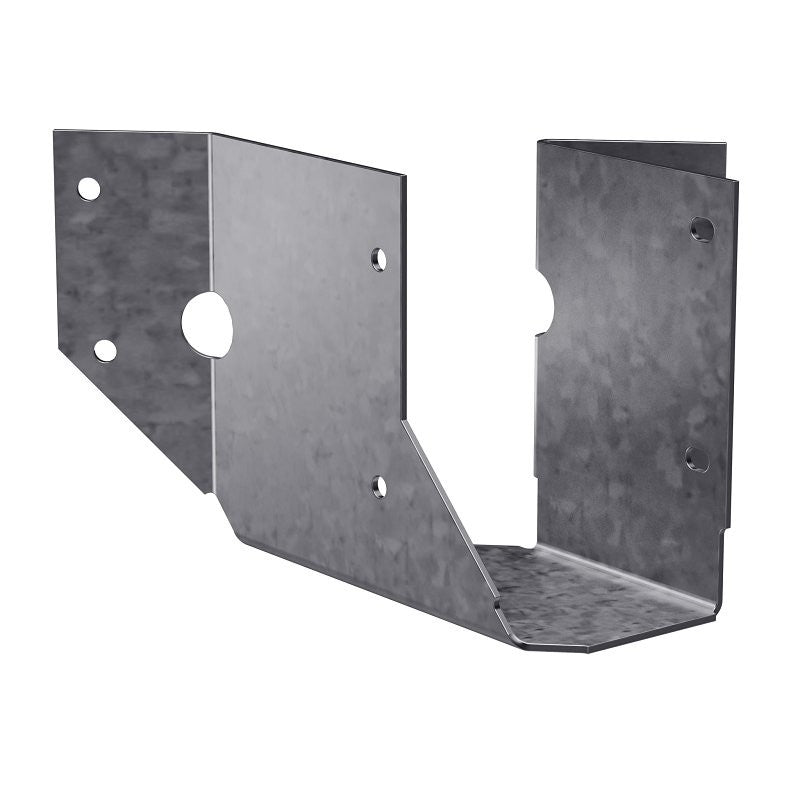

Simpson Strong-Tie SUR SUR26Z Hanger, 5 in H, 2 in D, 1-9/16 in W, Steel, ZMAX, Face Mounting (Pack of 10)
The SUR/L are 45 deg skewed hangers designed to support solid sawn and engineered-wood products used in wood construction. These U-shaped hangers encapsulate the top-flange of the joist, so no web stiffeners are required for standard installation.
This item may be available through special order. Please contact Customer Service to inquire. customerservice@hardwareandtools.com

Product specification
Brand
Simpson Strong-Tie
UPC
707392172703
Model Number
SUR26Z
Application
For wood framing
Feature
Skewed right
Feature
Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist
Feature
These hangers cannot be modified but will accommodate a 40 to 50 deg skewed joist
Feature
Made from 16 ga steel
Feature
ZMAX® galvanization offers extra corrosion resistance for exterior and treated-wood applications
Feature
Features positive-angle nailing for engineered-wood sizes to prevent wood splitting and to speed installation
Category
HARDWARE
Additional Category
FASTENERS
Additional Category
BUILDING MATERIALS
Additional Category
JOIST HANGERS & CONNECTORS
Additional Category
JOIST HANGERS
Additional Category
Joist Hangers
Length
10.028
Width
8.014
Height
4.484
Weight
6.4
