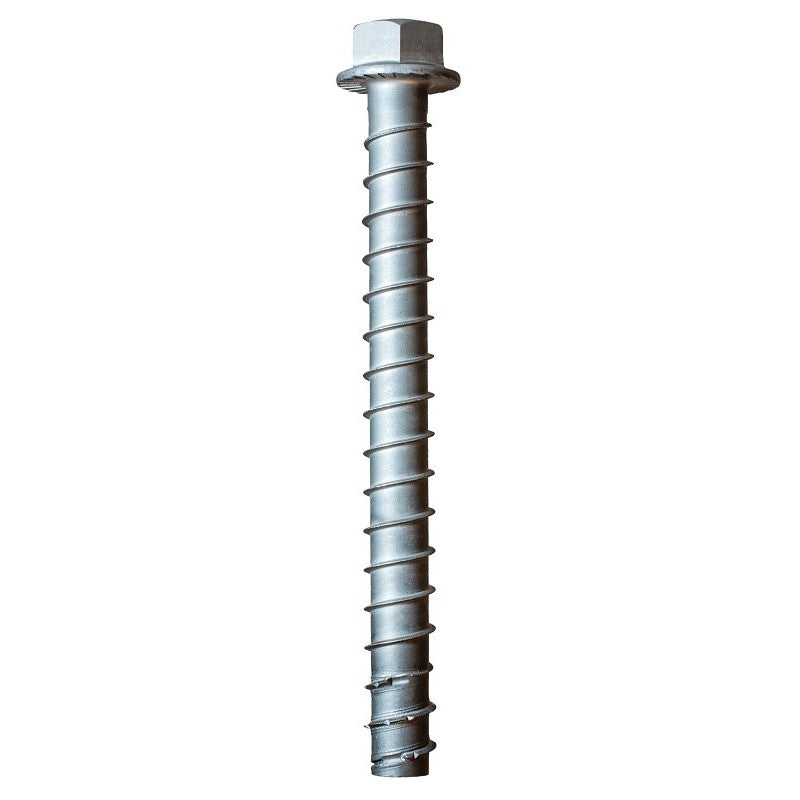

Simpson Strong-Tie Titen HD THDB62600H4SSF1 Heavy-Duty Screw Anchor, 5/8 in Dia, 6 in L, Stainless Steel (Pack of 10)
Product specification
Simpson Strong-Tie
707392003311
THDB62600H4SSF1
For cracked and uncracked concrete and masonry applications
Qualified for static and seismic loading conditions
Thread design undercuts to efficiently transfer the load to the base material
No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits
Hex washer head requires no separate washer and provides a clean installed appearance
The THDSS has an innovative carbon-steel thread that effectively cuts the concrete while significantly limiting the amount of carbon steel in the anchor; less carbon steel, less expansion
Made from Type 304 stainless steel
Caution: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity
