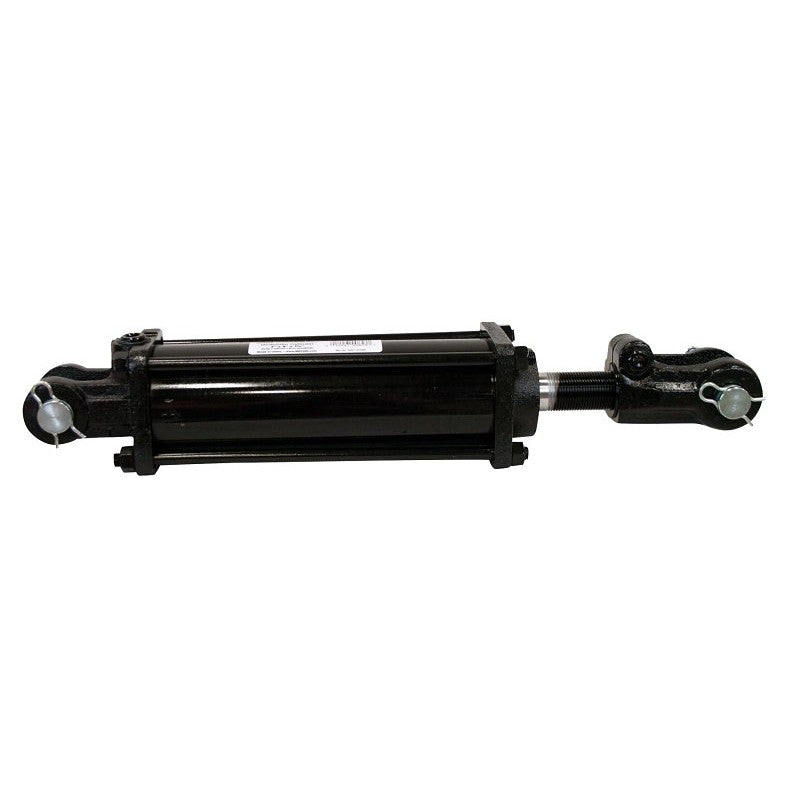

SMV Industries 2X10 NON-ASAE Hydraulic Cylinder, Double Acting, Non-ASAE, 10 in L Stroke, 2 in Bore, 1-1/8 in Dia Rod

Smv Industries

012947008568

2X10 NON-ASAE

Bore - piston diameter inside the cylinder tube, the larger bore equals greater lifting force

Rod diameter - diameter of the piston or rod, larger diameter equals greater lifting force

Stroke - cylinder travel meaning measured dimensions of the extended length of the rod minus the retracted length (measured center pin to center pin)

Clevis - most common end type, consisting of two, one on each end, with holes drilled for pins to go thru

Tie rod - most common in agricultural applications, tie rods are 4 long, threaded bolts, running the length of the cylinder, to provide extra stability

Dual (or double) acting - cylinder works under pressure in a pulling or pushing function

O-ring static seal and piston seal is 2 back up rings plus O-ring

Rod end cap - 1 NPT port, base end cap - 2 NPT ports
