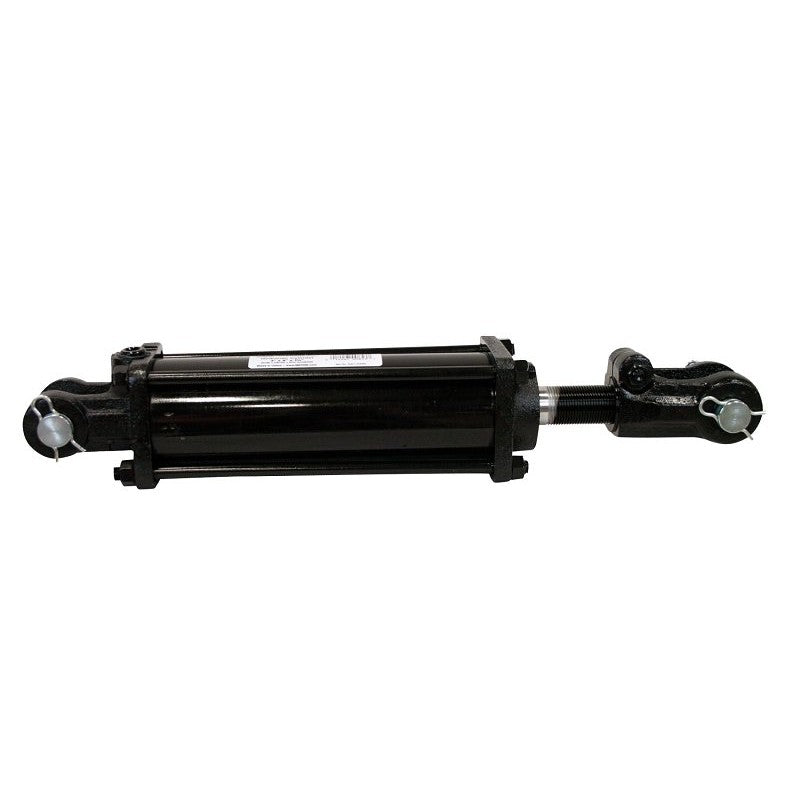

SMV Industries 3X8 ASAE Hydraulic Cylinder, ASAE, Double Acting, 8 in L Stroke, 3 in Bore, 1-1/4 in Dia Rod
Product specification
Smv Industries
012947008537
3X8 ASAE
Bore - piston diameter inside the cylinder tube, the larger bore equals greater lifting force
Rod diameter - diameter of the piston or rod, larger diameter equals greater lifting force
Stroke - cylinder travel meaning measured dimensions of the extended length of the rod minus the retracted length (measured center pin to center pin)
Clevis - most common end type, consisting of two, one on each end, with holes drilled for pins to go thru
Tie rod - most common in agricultural applications, tie rods are 4 long, threaded bolts, running the length of the cylinder, to provide extra stability
Dual (or double) acting - cylinder works under pressure in a pulling or pushing function
O-ring static seal and piston seal is 2 back up rings plus O-ring
Rod end cap - 1 NPT port, base end cap - 2 NPT ports
