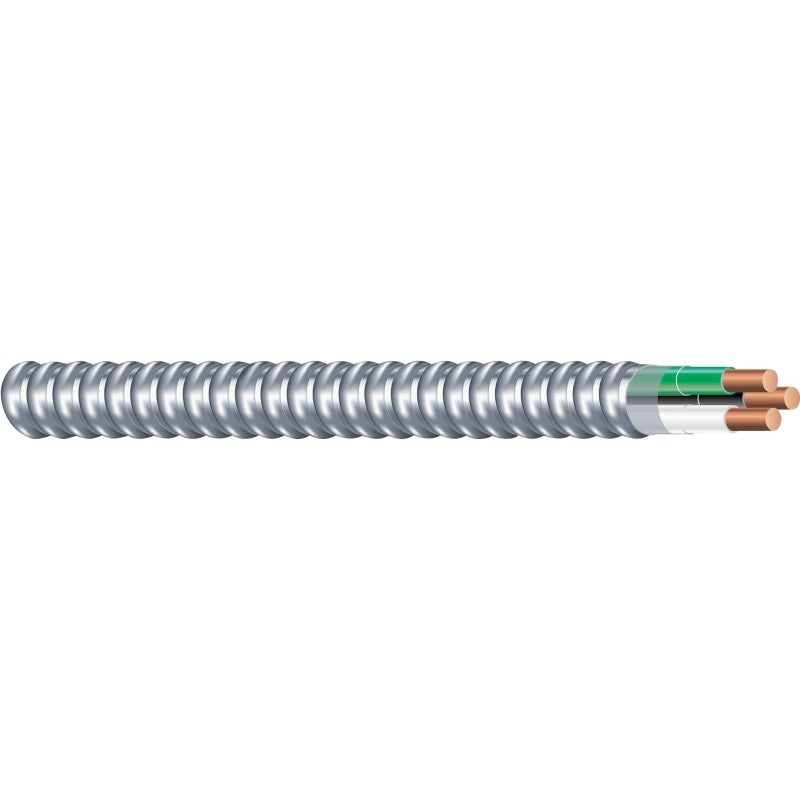

Southwire Armorlite 68579222 Armored Cable, 14 AWG Cable, 2 -Conductor, 50 ft L, Copper Conductor
Armored cable aluminum jacket - copper conductors type mc - box cable "Armorlite" 14/2 - 15 amp size 14/2 50 feet. Pre-installed conductors within an overall protective metallic interlocked armor. 45 percent lighter than steel MC cable. Cable reverse wound for ease of pulling and installation. Conductors - solid bare annealed copper per ASTM B-3, stranded copper stranding per ASTM B-8 for conductor. Conductor insulation rated 90 degree Celsius dry, 75 degrees Celsius wet at 600 volt. Conductor insulation is flame retardant, heat resistant PVC with flame, oil and gasoline resistant nylon jacket. General applications: b ranch, feeder, and service power distribution in commercial, industrial, institutional, and multi-residential construction/facilities, power, lighting, control, and signal circuits, concealed or exposed installations, installed in raceway/conduit, fished or embedded in plaster, installed in cable tray, and as aerial cable on a messenger. UL Classified 1, 2 and 3 hour through penetration fire stop systems: W-L-3110, W-L-3113, W-L-31120, W-L-3121, C-A-J-3115, C-A-J-3140, C-A-J-3142, C-A-J-3202, C-A-J-4065, and C-A-J-4066. UL Listed.
Product specification
Brand
Southwire
UPC
032886345227
Model Number
68579222
Application
For branch, feeder and service power distribution in commercial, industrial, institutional and multi-residential buildings
Feature
Fished or embedded in plaster
Feature
Concealed or exposed installations
Feature
Environmental air-handling spaces per NEC 300.22©
Feature
As aerial cable on a messenger
Feature
Installation in cable tray and approved raceways
Feature
Lightweight aluminum interlocked armor
Category
ELECTRICAL
Additional Category
ELECTRICAL
Additional Category
ROUGH ELECTRICAL
Additional Category
ELECTRICAL WIRE
Additional Category
ARMORED CABLES
Additional Category
Armored Cable
Length
11.75
Width
3.5
Height
11.75
Weight
3.91
