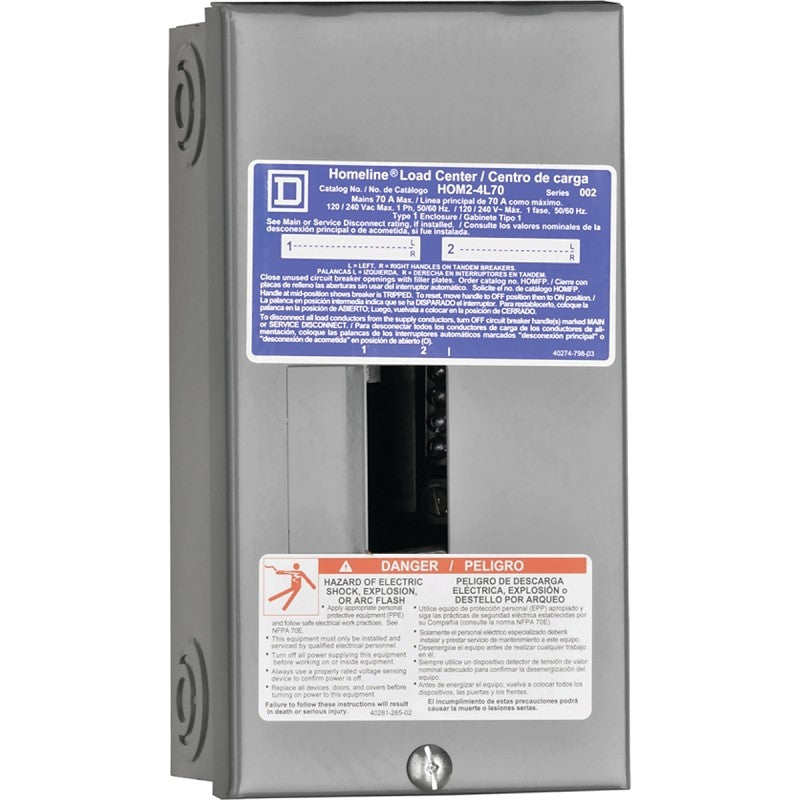

Square D Homeline HOM24L70SCP Load Center, 70 A, 2-Space, 4-Circuit, Main Lug, NEMA 1 Enclosure, Gray, Plug
Main lug indoor load center, 70 A, 2 space/4 circuits. Maximum SCCR of 10,000 and a maximum load of 240 V. NEMA type 1 enclosure. Expandable load center capacity with the use of tandem or quad breakers. CSA approved for vertical, horizontal or inverted mounting. Accepts aluminum or copper conductors. Approved to only accept Canadian Homeline breakers.
Product specification
Brand
Square D
UPC
047569071201
Model Number
HOM24L70SCP
Feature
Accommodates plug-on secondary surge arrestor
Feature
Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
Feature
Surface mount device cover without a door
Feature
Thermoplastic interior assembly is among the most rugged in the industry
Feature
Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
Category
ELECTRICAL
Additional Category
ELECTRICAL
Additional Category
ROUGH ELECTRICAL
Additional Category
LOAD CENTERS
Additional Category
LOAD CENTERS
Additional Category
Main Lug Load Centers
Length
11.66
Width
6.62
Height
3.7
Weight
3.65
