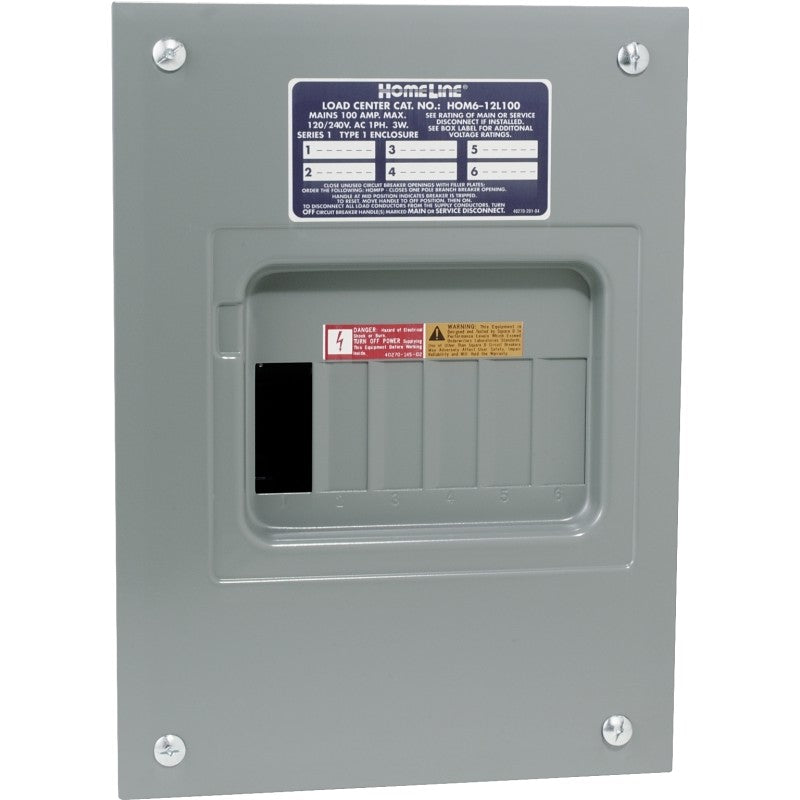

Square D Homeline HOM612L100FCP Load Center, 100 A, 6-Space, 12-Circuit, Main Lug, NEMA 1 Enclosure, Gray, Plug
Main lug indoor load center, 100 A, 6 space/12 circuit. 1-1/2 in knockouts in the top and bottom end walls to allow for use with either overhead or underground fed electrical wiring. 22,000 short circuit current rating (SCCR) and can be fitted with a secondary surge arrestor (not included) for added protection. Single phase, 3-wire, solid neutral. UL listed.
This item may be available through special order. Please contact Customer Service to inquire. customerservice@hardwareandtools.com
Product specification
Brand
Square D
UPC
047569071249
Model Number
HOM612L100FCP
Feature
Accommodates plug-on secondary surge arrestor
Feature
Overhead/underground feed simply by rotating the device before installing
Feature
Flush mount device cover without a door
Feature
Thermoplastic interior assembly is among the most rugged in the industry
Feature
Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
Feature
Three ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
Category
ELECTRICAL
Additional Category
ELECTRICAL
Additional Category
ROUGH ELECTRICAL
Additional Category
LOAD CENTERS
Additional Category
LOAD CENTERS
Additional Category
Main Lug Load Centers
Length
14.88
Width
10.66
Height
4.41
Weight
7.7
