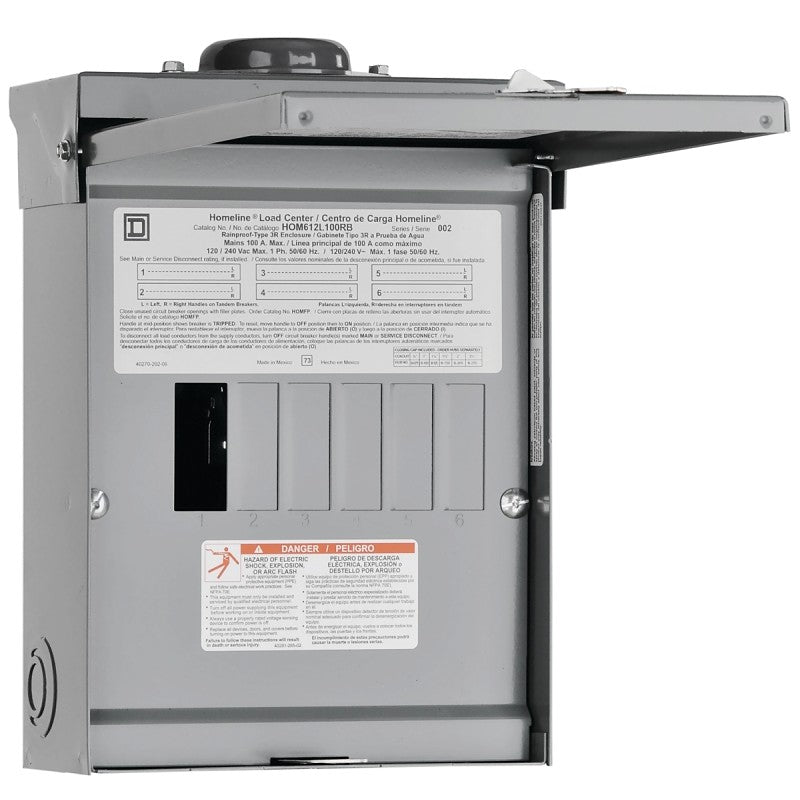

Square D Homeline HOM612L100RBCP Load Center, 100 A, 6 -Space, 12 -Circuit, Main Lug, NEMA 3R Enclosure, Gray
Outdoor main lug load center, 100 A, 6 space and 12 circuits. Can be wired for underground or overhead feeds with a 2-1/2 in hub on the top and a 1-1/2 in knockout on the bottom. NEMA type 3R enclosure resists rain for durable performance. ANSI certified and UL listed.
Product specification
Brand
Square D
UPC
047569071256
Model Number
HOM612L100RBCP
Feature
Accommodates plug-on secondary surge arrestor
Feature
Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
Feature
Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
Feature
Thermoplastic interior assembly is among the most rugged in the industry
Feature
Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
Feature
Three ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
Category
ELECTRICAL
Additional Category
ELECTRICAL
Additional Category
ROUGH ELECTRICAL
Additional Category
LOAD CENTERS
Additional Category
LOAD CENTERS
Additional Category
Main Lug Load Centers
Length
14.48
Width
10.2
Height
4.73
Weight
9.5
