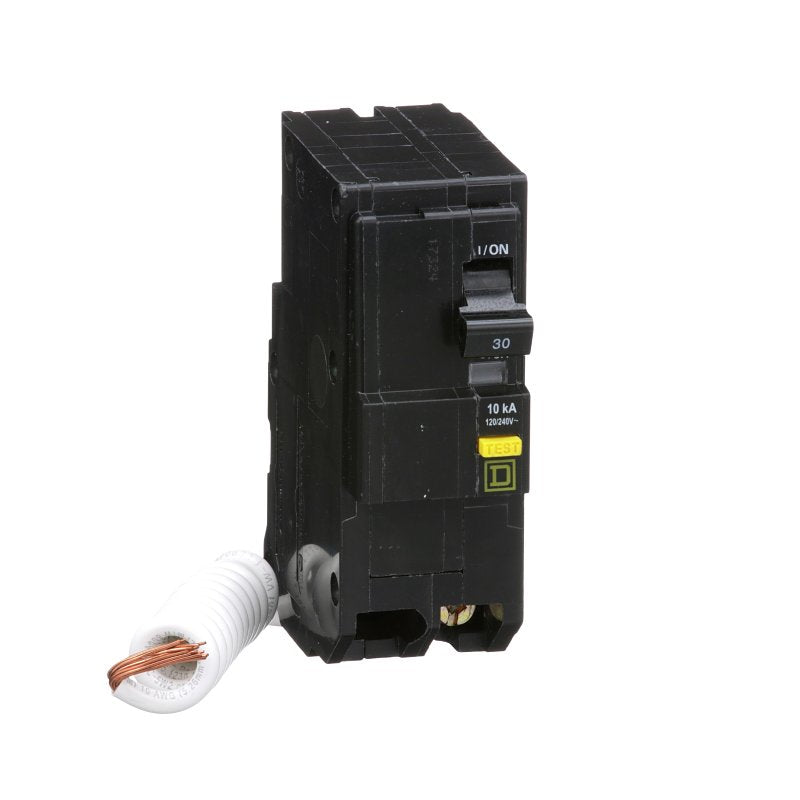

Square D QO QO230GFIC Miniature Circuit Breaker, Ground Fault, 30 A, 2-Pole, 120/240 VAC, Plug-In (Pack of 3)
QO two-pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC and DC systems. These circuit breakers have an over center, trip-free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2-pole QO circuit breaker is rated at 30 A at 120/240 VAC. This unit provides 10 kA breaking capacity and plug-in mounting. This product includes a 6 mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. This product is in clam packaging.

Product specification
Brand
Square D
UPC
785901508656
Model Number
QO230GFIC
Feature
Provides great circuit protection
Feature
Reliable and durable
Feature
Plug-on neutral design and shorter footprint for faster installs
Feature
Simple design and clear instructions for quick setup
Feature
Time saving diagnostics with touch of a button
Category
ELECTRICAL
Additional Category
ELECTRICAL
Additional Category
ROUGH ELECTRICAL
Additional Category
FUSES & BREAKERS
Additional Category
CIRCUIT BREAKERS
Additional Category
Circuit Breakers
Length
8.25
Width
4.75
Height
5.0
Weight
0.51
