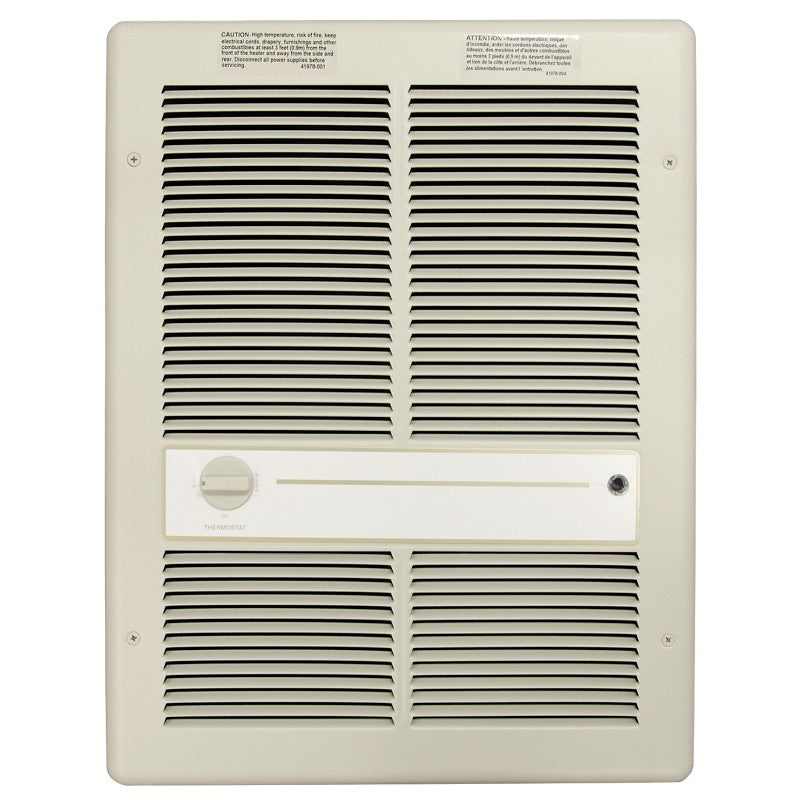

TPI HF3315TRP Heater, 10.8/12.5 A, 208/240 V, 5120 to 10240 Btu, 175 cfm Air, Ivory
Fan forced and features a heavy-duty heating element with large fin area for maximum heat transfer. High-quality nickel chrome wire is sealed in a steel tubular sheath. A simple field conversion to a tamper-resistant feature. Whisper quiet, vane axial fan that has proven to be successful in other products. Rough-in dimensions 19-15/16 in H x 14-3/16 in W x 4 in D. Surface mounting kit is not included. Decorator ivory finish. UL listed. Built-in single pole thermostat. Surface mounting kit can be purchased from the factory, No. 3310EX33R.
Product specification
Brand
Tpi
UPC
686334380560
Model Number
HF3315TRP
Application
For garage
Feature
Automatic reset thermal limit
Feature
Steel block fin element
Feature
Units with dual wattage, factory wired to highest wattage
Feature
Wattage selectable at time of installation on some models
Category
HEATING & COOLING
Additional Category
HEATING & COOLING
Additional Category
HEAT & AIR CONDITIONING
Additional Category
HEATERS
Additional Category
ELECTRIC WALL & CEILING HEATERS
Additional Category
Electric Wall Heaters
Length
20.86
Width
16.52
Height
6.15
Weight
22.0
